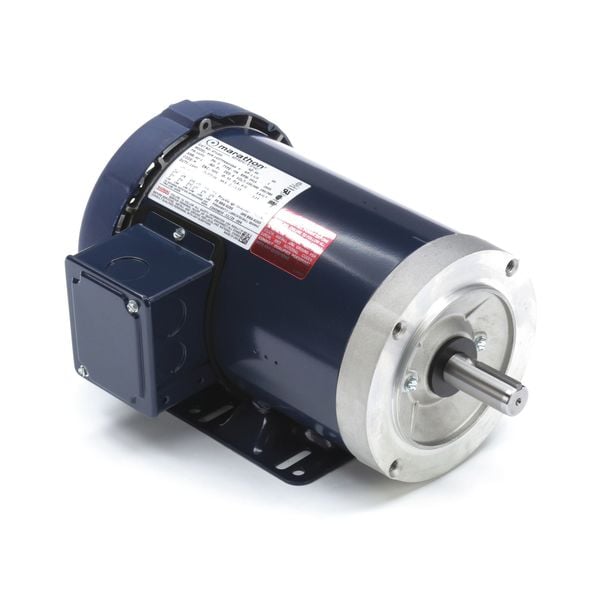

Three-Phase General Purpose Motor, 1 1/2 HP, 143TC Frame, 230/460V AC Voltage

  • Mfr # 143TTFR6010

  • Zoro # G5753544

product price:
$
462.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
3515 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
4.0/2.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
143TTFR6010
Zoro #
G5753544
UPC #
-
Country of Origin
United States

Dimensions

Length Less Shaft
11 1/4 in
Overall Length
13 3/8 in
Shaft Dia.
7/8 in
Shaft Length
2 1/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
7/8 in
Frame Size
143TC
Wire Rope Length
13 3/8 in
Length
13 3/8 in

Details

Item
General Purpose Motor
HP
1 1/2
Nameplate RPM
3515 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
4.0/2.0 A
Frame
143TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
84 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
Yes
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Full Load Amps @ 50Hz
4.0/2.0 A
Usable @ 200V
Not Usable at 200V
RPM @ 50Hz
3515 rpm
Weight
39 lb
Service Factor @ 50Hz
1.15
HP @ 50Hz
1 1/2 hp
Voltage @ 50Hz
230/460
Inverter Rating
Inverter Rated
Frequency
60/50 Hz
Efficiency Rating
NEMA Premium Efficiency
Manufacturers Warranty
1 yr
Number of Speeds
1
Nameplate Service Factor @ 50 Hz
1.15
Application
General Purpose
Product Type
General Purpose Motor
Full Load Current @ 60 Hz
4.0/2.0 A
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 50 Hz
4.0/2.0 A
Nameplate Horsepower @ 50 Hz
1 1/2 hp
Nameplate RPM @ 50 Hz
1,760 RPM
Shaft Design
Keyed
Bearing Type
Ball
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Voltage @ 50 Hz
208-230/460V AC
Insulation Class
F
Frame Material
Steel

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3515 rpm, Frame 143TC, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 4.0/2.0 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600
