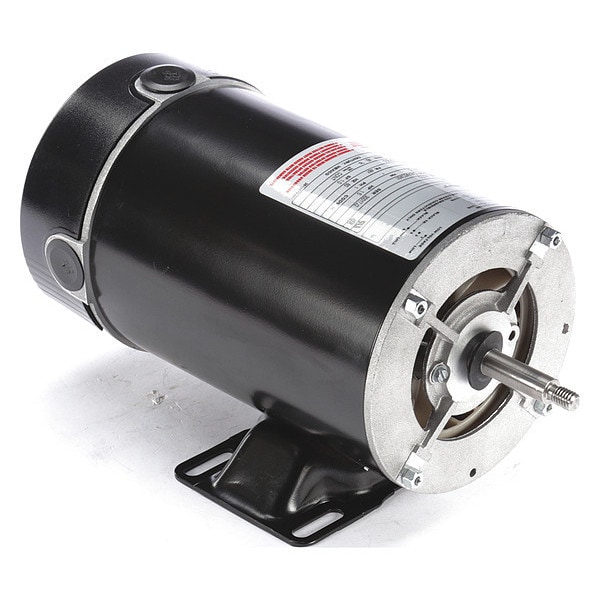

Pool Pump Motor, Capacitor-Start, 1 1/2 HP, 48Y Frame, 3,450 Nameplate RPM

  • Mfr # BN35V1
  • Zoro # G5769757
product price:
$
257.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
1 1/2
Motor Service Factor
1
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BN35V1
Zoro #
G5769757
UPC #
-
Country of Origin
China

Dimensions

Shaft Dia.
1/2 in
Shaft Length
2 3/8 in
Length Less Shaft
9 11/16 in
Overall Length
12 1/16 in
Height
9 1/2 in
Bolt Circle Dia.
5 3/16 in
Body Dia.
5.8 in
Shaft Dia. (In.)
1/2
Frame Size
48Y
Bolt Circle Diameter
5 3/16 in
Body Diameter
5.8 in
Shaft Diameter
1/2 in
Wire Rope Length
12 1/16 in
Length
12 1/16 in

Details

Item
Pool and Spa Pump Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
1 1/2
Motor Service Factor
1
RPM Range
3,001-3,600
Nameplate RPM
3,450
Frame
48Y
Motor Shaft Rotation
CCWSE
Voltage
115V AC, 230V AC
Phase
Single
Motor Mounting Type
Rigid Base
Full Load Amps
16.0/8.0 A
Motor Thermal Protection
Auto
Hz
60 Hz
Ins. Class
B
Motor Sub Application
Pool and Spa Pump
Motor Application
Pump
Shaft Material
Stainless Steel
Motor Bearings
Ball
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Finish
Black
Standards
1563, 1795 Approvable, CSA (LR43341), UL (E25022/46412), UL 1081
Shaft
Threaded 3/8-16 UNC-2A
Includes
12:00 and 3:00 O'Clock Conduit Entries, Four #8-32 Extended Shaft-End Thru-Bolts on 5.146 in Bolt Circle
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Horizontal
No. of Speeds
1
Motor Frame Material
Steel
Weight
20 lb
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Motor Shaft Design
Threaded
Usable @ 208V
Not Usable at 208V
Application
Pump
Shaft Type
Threaded 3/8-16 UNC-2A
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Threaded
Number of Speeds
1
Frame Material
Steel
Insulation Class
B
Product Type
Pump Motor
Number of Wires
10
Motor Enclosure Type
Open Drip Proof
Sub Application
Pool and Spa Pump
Mounting Position
Horizontal
Full Load Current @ 60 Hz
16.0/8.0 A
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C

Description

Pool and Spa Pump Motor, Body Dia. 5.8 in, Bolt Circle Dia. 5 3/16 in, Duty Cycle Continuous, Finish Black, Frame 48Y, Hz 60 Hz, Full Load Amps 16.0/8.0, Height 9 1/2 in, HP 1 1/2, Includes 12:00 and 3:00 O'Clock Conduit Entries, Four #8-32 Extended Shaft-End Thru-Bolts on 5.146 in Bolt Circle, Ins. Class B, Length Less Shaft 9 11/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Enclosure Design Open Dripproof

Restrictions

This item has been restricted from sale in the following states: CA, NY
