Shop LEESON

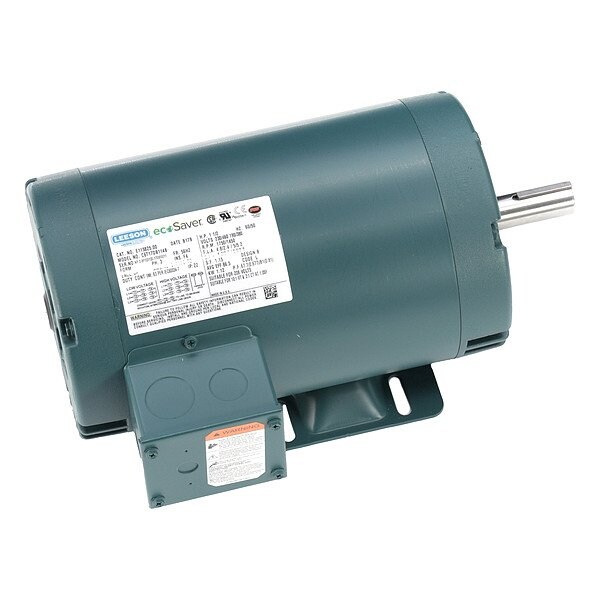

Three-Phase General Purpose Motor, 1 1/2 HP, 56HZ Frame, 230/460V Voltage, 1,750 Nameplate RPM

  • Mfr # E115825.00

  • Zoro # G511930572

product price:
$
788.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
1,750
Voltage
230/460V
Motor Mounting Type
Rigid Base
Full Load Amps
2.15 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E115825.00
Zoro #
G511930572
UPC #
691720041871
Country of Origin
United States

Dimensions

Length Less Shaft
11 3/4 in
Overall Length
13 3/16 in
Shaft Dia.
7/8 in
Shaft Length
1 1/2 in
Bolt Circle Dia.
Not available
Manufacturers Warranty Length
Not available
Shaft Diameter
7/8 in
Frame Size
56HZ
Wire Rope Length
13 3/16 in
Length
13 3/16 in

Details

Item
General Purpose Motor
HP
1 1/2
Nameplate RPM
1,750
Voltage
230/460V
Motor Mounting Type
Rigid Base
Full Load Amps
2.15 A
Frame
56HZ
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1750
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
Reversible
Voltage Compatibility
230/460 V
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CE, CSA Certified, UL Listed
Full Load Amps @ 50Hz
2.15 A
Usable @ 208V
Usable at 208V
HP @ 50Hz
1 1/2 hp
Inverter Rated
Yes
Voltage @ 50Hz
190/380V
Weight
42 lb
NEMA Design
B
Service Factor @ 50Hz
1.15
Usable @ 200V
Not Usable at 200V
Motor Thermal Protection
T-Stat
RPM @ 50Hz
1,450
Duty Cycle
Continuous
Includes
Not available
Bearing Protection
Not available
Inverter Rating
Inverter Rated
Shaft Design
Keyed
Full Load Current @ 50 Hz
2.15 A
NEMA Design Class
B
Product Type
General Purpose Motor
Full Load Current @ 60 Hz
2.15 A
Application
General Purpose
Number of Speeds
1
Nameplate RPM @ 50 Hz
1,460/1,465 RPM
Bearing Type
Ball
Nameplate Horsepower @ 50 Hz
1 1/2 hp
Nameplate Service Factor @ 50 Hz
1.15
Nameplate Voltage @ 50 Hz
190-220/380/415V AC
Mounting Position
Horizontal
Frequency
60/50 Hz
Efficiency Rating
NEMA Premium Efficiency
Insulation Class
F
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.15

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1,750, Frame 56HZ, Voltage 230/460V, 60/50 Hz Hz, Three Phase, Full Load Amps 2.15 A, Rigid Base Motor Mounting Type, Motor Thermal Protection T-Stat, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, 1750, CE, CSA Certified, UL Listed, Includes Not available
