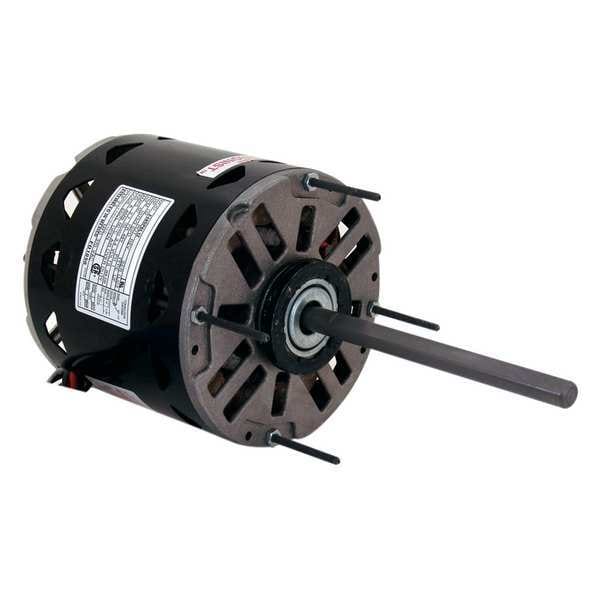

Motor, PSC, 1/4 HP, 1625 RPM, 115V, 48Y, OAO

  • Mfr # FDL1024

  • Zoro # G1203264

product price:
$
247.99
/ea
Free Shipping & Returns

Key Features

Includes
Belly Band, Resilient Mounting Ring
Body Dia.
5 5/8 in
Motor Thermal Protection
Auto
Shaft Length
6 7/16 in
No. of Speeds
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FDL1024
Zoro #
G1203264
UPC #
-
Country of Origin
India
Includes
Belly Band, Resilient Mounting Ring
Motor Thermal Protection
Auto
No. of Speeds
3
Frame
48Y
Standards
CSA Certified, UL Recognized
Nameplate RPM
1,625
Motor Enclosure Design
Open Air-Over
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Hz
60 Hz
Ins. Class
A
Application
Fan/Blower
Voltage
115V AC
Motor Design
Permanent Split Capacitor
HP
1/4
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Motor Application
HVAC/R
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Phase
Single
Capacitor Required
Capacitor Not Included
Motor Mounting Type
Ring
Motor Service Factor
1
Item
Fan and Blower Motor
Ring to Ring Center
4 15/16 in
Motor Shaft Design
Flat
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
RPM Range
1,601-1,700
Motor Bearings
Ball
Mounting Stud Location
4/Shaft End
Motor Mounting Position
All Angle
Full Load Amps
3 A
Mounting Holes
(4) #8-32
Usable @ 200V
Not Usable at 200V
Stud Quantity
4
Number of Shafts
1
Weight
12 lb
Motor Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Mounting
Stud
Number of Speeds
3
Bearing Type
Ball
Shaft Design
Flat
Product Type
Fan and Blower Motor
Full Load Current @ 60 Hz
3 A
Wattage
190 W
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
40 Degrees C
Sub Application
General Purpose
Drive Type
Direct Drive
Mounting Position
All Angle
Frequency
60 Hz
Insulation Class
A
Frame Material
Steel
Motor Enclosure Type
Open Air Over

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 3, Voltage 115V AC, 3 A Full Load Amps, 48Y Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
