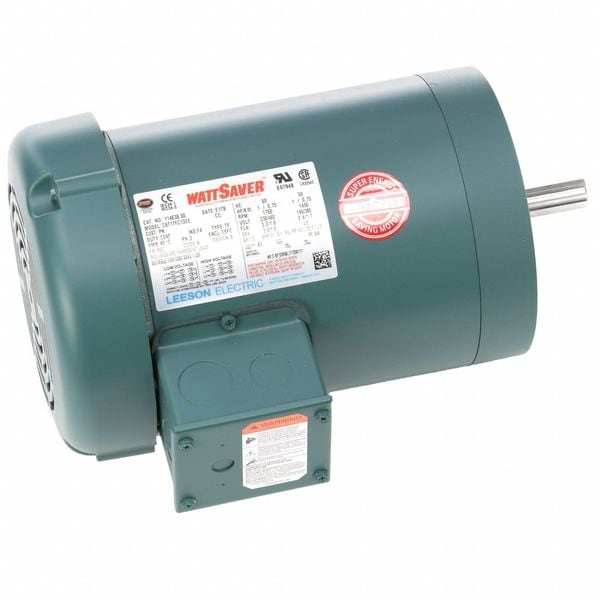

Three-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1,760 Nameplate RPM

  • Mfr # 114638.00

  • Zoro # G007353922

product price:
$
978.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1,760
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
3.2/1.6 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
114638.00
Zoro #
G007353922
UPC #
691720014257
Country of Origin
United States

Dimensions

Overall Length
12 1/2 in
Shaft Dia.
5/8 in
Shaft Diameter
5/8 in
Frame Size
56C
Wire Rope Length
12 1/2 in
Length
12 1/2 in

Details

Item
General Purpose Motor
HP
1
Nameplate RPM
1,760
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
3.2/1.6 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Air-Over
RPM Range
Over 3,600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
Reversible
Voltage Compatibility
230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
NEMA 56
Nominal Efficiency
85.5 %
Standards
CSA, UL
Motor Thermal Protection
T-Stat
Weight
37 lb
Removable Base
Permanently Lubricated
Inverter Rated
Yes
Duty Cycle
Continuous
NEMA Design
B
Inverter Rating
Inverter Rated
Nameplate Voltage @ 50 Hz
190-220/380/415V AC
Product Type
General Purpose Motor
Frequency
60 Hz
Application
General Purpose
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
Premium Efficiency (IE3)
Frame Material
Steel
Full Load Current @ 60 Hz
3.2/1.6 A
Nameplate RPM @ 50 Hz
1,450/1,460 RPM
Bearing Lubrication Type
Permanently Lubricated
Nameplate Service Factor @ 60 Hz
1.15
Mounting Position
Horizontal
Bearing Type
Ball
NEMA Design Class
B
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Air-Over

Description

Here is the revised description:

The LEESON - 114638 is a General Purpose Motor, a type of 3-Phase AC motor widely used in industrial and commercial settings. This motor converts electrical energy into mechanical energy to power various types of machinery. Its versatility allows it to be utilized across different sectors, from manufacturing lines to HVAC systems.

Key Features of the LEESON - 114638 General Purpose Motor:

  • Duty Cycle: The duty cycle is continuous, which suggests it may be suitable for certain industrial applications.
  • Frame: The frame size is 56C, conforming to standard specifications for compatibility and interchangeability.
  • Full Load Amps: It has full load amps of 3.2/1.6 A which are crucial for determining power supply requirements and ensuring safe operation.
  • HP: With an HP (Horsepower) rating of 1, this motor has the potential to be used in various industrial applications.
  • Inverter Rated: Yes – this signifies that the motor can be powered by a variable frequency drive for precise control over speed and torque.
  • Inverter Rating: An Inverter Rating of 10:1 indicates that the motor is designed to work with a variable frequency drive.
  • Nominal Efficiency: It has a nominal efficiency rate at 85.5% under specified operating conditions

Restrictions

This item has been restricted from sale in the following states: CA
