Shop LEESON

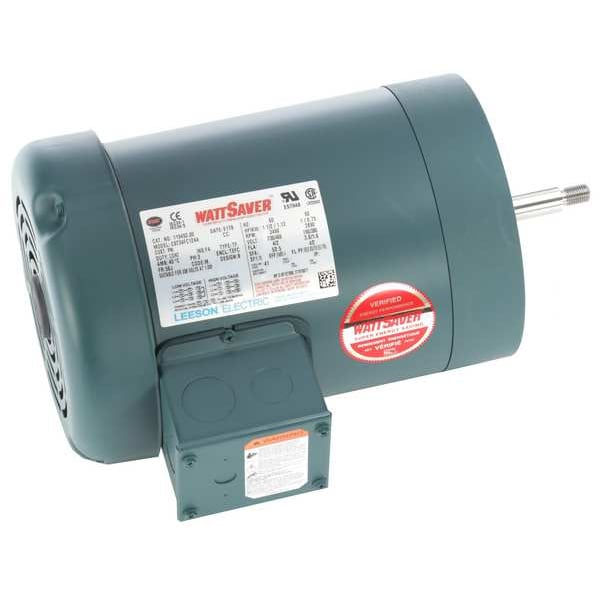

3-Phase Jet Pump Motor, 1 1/2 HP, 56J Frame, 230/460V AC Voltage, 3,490 Nameplate RPM

  • Mfr # 119453.00
  • Zoro # G600904873

product price:
$
467.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
3,490 RPM
Voltage
230V AC, 460V AC
Motor Mounting Type
Face
Full Load Amps
4.0/2.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
119453.00
Zoro #
G600904873
UPC #
-
Country of Origin
United States
Item
Jet Pump Motor
HP
1 1/2
Nameplate RPM
3,490 RPM
Voltage
230V AC, 460V AC
Motor Mounting Type
Face
Full Load Amps
4.0/2.0 A
Frame
56J
Motor Bearings
Ball
Motor Service Factor
1.2
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
RPM Range
3,001-3,600
Phase
Three
No. of Speeds
1
Motor Application
Pump
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
104 Degrees F
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Threaded
Nominal Efficiency
84 %
Standards
CE Certified, CSA Certified, UL Recognized
Bearing Protection
Shaft Shields
Conduit Box Position
F1
Weight
41 lb
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Motor Sub Application
Jet Pump
Motor Thermal Protection
None
Shaft Material
Stainless Steel
Usable @ 200V
Not Usable at 200V
NEMA Design
None
Conduit Box Location
Exterior
Shaft Design
Threaded
Efficiency Rating
Standard Efficiency (IE1)
Bearing Protection Type
Shaft Shields
Number of Speeds
1
Sub Application
Jet Pump
Product Type
Pump Motor
Full Load Current @ 60 Hz
4.0/2.0 A
Number of Wires
6
Mounting Position
Horizontal
Application
Pump
Frequency
60 Hz
Frame Material
Steel
Bearing Type
Ball
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Service Factor @ 60 Hz
1.2
Insulation Class
F
Nameplate RPM @ 60 Hz
3,490 RPM
Nameplate Voltage @ 60 Hz
230/460V AC
Nameplate Horsepower @ 60 Hz
1 1/2 hp

Dimensions

Length Less Shaft
10 1/4 in
Overall Length
12 11/16 in
Shaft Dia.
5/8 in
Shaft Length
2 1/2 in
Bolt Circle Dia.
5 7/8 in
Body Dia.
6.5 in
Height
7 7/16 in
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 7/8 in
Body Diameter
6.5 in
Frame Size
56J
Wire Rope Length
12 11/16 in
Length
12 11/16 in

Description

Jet Pump Motor, Bearing Protection Shaft Shields, Body Dia. 6.5 in, Bolt Circle Dia. 5 7/8 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 56J, Hz 60 Hz, Full Load Amps 4.0/2.0, Height 7 7/16 in, HP 1 1/2, Ins. Class F, Length Less Shaft 10 1/4 in, Max. Ambient Temp. 104 Degrees F, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled
