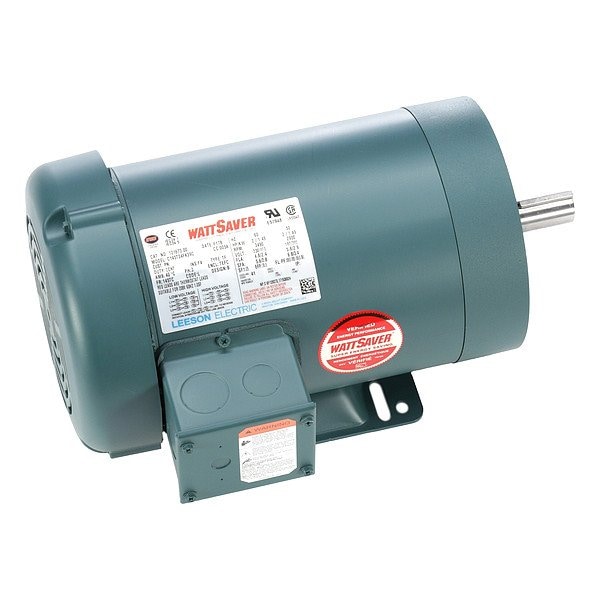

Three-Phase General Purpose Motor, 2 HP, 145TC Frame, 230/460V Voltage, 3,490 Nameplate RPM

  • Mfr # 121673.00

  • Zoro # G811929160

product price:  $866.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
3,490
Voltage
230/460V
Motor Mounting Type
Rigid Base
Full Load Amps
2.4 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
121673.00
Zoro #
G811929160
UPC #
691720348154
Country of Origin
United States

Dimensions

Length Less Shaft
11 3/16 in
Overall Length
13 7/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
Not available
Bolt Circle Dia.
Not available

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
3,490
Voltage
230/460V
Motor Mounting Type
Rigid Base
Full Load Amps
2.4 A
Frame
145TC
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3490
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
Reversible
Voltage Compatibility
230/460 V
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CE, CSA Certified, UL Listed
NEMA Design
B
Includes
Not available
Bearing Protection
Not available
RPM @ 50Hz
2,900
Weight
44 lb
Duty Cycle
Continuous
Full Load Amps @ 50Hz
2.4 A
Usable @ 200V
No
Voltage @ 50Hz
190/380V
Motor Thermal Protection
T-Stat
Service Factor @ 50Hz
1.25
Usable @ 208V
No
HP @ 50Hz
2 hp

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 3,490, Frame 145TC, Voltage 230/460V, 60/50 Hz Hz, Three Phase, Full Load Amps 2.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection T-Stat, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, 3490, CE, CSA Certified, UL Listed
