Shop LEESON
See all product information

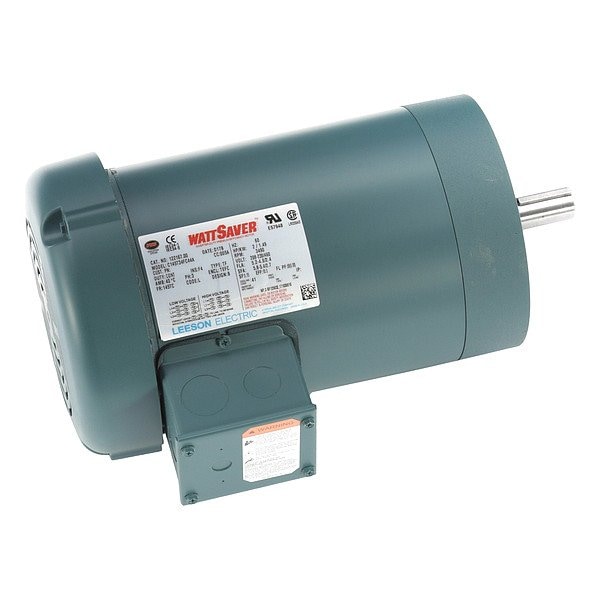

Three-Phase General Purpose Motor, 2 HP, 145TC Frame, 230/460V Voltage, 3,490 Nameplate RPM
Mfr # 122167.00
Zoro # G311929912
product price:Â $775.99
/ea
Free Shipping & Returns
Key Features
HP
2
Nameplate RPM
3,490
Voltage
230/460V
Motor Mounting Type
C-Face
Full Load Amps
2.4 A
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
122167.00
Zoro #
G311929912
UPC #
691720043899
Country of Origin
United States
Dimensions
Length Less Shaft
11 3/16 in
Overall Length
13 7/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Frame Size
145TC
Shaft Diameter
7/8 in
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 3,490, Frame 145TC, Voltage 230/460V, 60 Hz Hz, Three Phase, Full Load Amps 2.4 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, Reversible Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, 3490, CE, CSA Certified, UL Listed
