  11. Motor, 1/11, 1/25, 1/70 HP, OEM Replacement Brand: Camco Replacement For: 2868-405-173
Shop All OEM Replacement Motors
Fasco

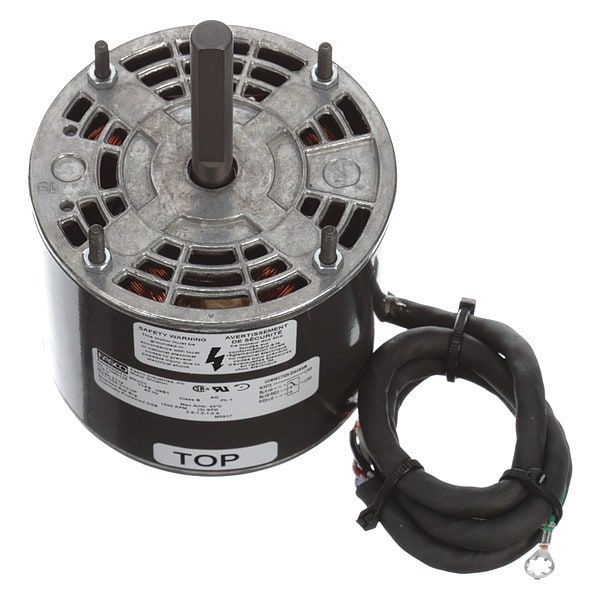

Motor, 1/11, 1/25, 1/70 HP, OEM Replacement Brand: Camco Replacement For: 2868-405-173

product price: $141.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Frame 4.4
  • HP 1/11, 1/25, 1/70 HP
  • Motor Application OEM Replacement
  • Motor Design Shaded Pole
  • Motor Enclosure Design Open Air-Over
See all product information

Product Information

Dimensions

Shaft Dia. 1/2"
Shaft Length 2.6"
Length Less Shaft 3 3/4 in
Bolt Circle Dia. 3-7/8"
Body Dia. 4-1/2"
Manufacturers Warranty Length 1 yr.
Overall Length 6.36"
Stud Size #10-32

Details

Frame 4.4
HP 1/11, 1/25, 1/70 HP
Item Motor
Motor Application OEM Replacement
Motor Design Shaded Pole
Motor Enclosure Design Open Air-Over
Motor Mounting Type Extended Studs
Motor Shaft Rotation Counterclockwise Shaft End
Motor Sub Application Condenser Fan
Motor Thermal Protection Automatic
Nameplate RPM 1500 rpm
No. of Speeds 3
Number of Shafts 1
OEM Replacement Brand Camco
Phase 1
RPM Range 1401-1500
Voltage 115V
Motor Bearings Ball
Replacement For 2868-405-173
Ins. Class B
Max. Ambient Temp. 40 Degrees C
Duty Air Over
Full Load Amps 2.9/1.5/1A
Capacitor Required No
Standards UL Recognized, CSA Certified
Motor Shaft Design Flat
Hz 60 Hz
Motor Service Factor 1.00
Application Fans and Blowers
Mounting Stud Pattern 4" x 4"
Voltage Compatibility 115V AC, 120V AC
Usable @ 200V No
Motor Frame Material Steel
Usable @ 208V No
Weight 7 lb

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/11, 1/25, 1/70 HP, Nameplate RPM 1,500, No. of Speeds 3, Voltage 115V AC, Full Load Amps 2.9/1.5/1.0 A, 4.4 in Frame, OEM Replacement Brand Camco, Replacement For 2868-405-173, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud
