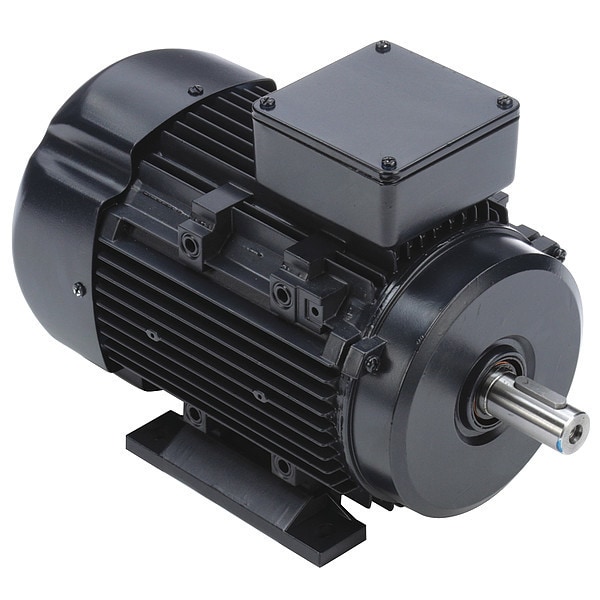

Leeson Three-Phase General Purpose Motor, 2 HP, 90L Frame, 230/460V AC Voltage, 1745 rpm Nameplate RPM 090LT17FH6326 - main

Three-Phase General Purpose Motor, 2 HP, 90L Frame, 230/460V AC Voltage, 1745 rpm Nameplate RPM

  • Mfr # 090LT17FH6326

  • Zoro # G5610035

product price:  $698.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1745 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.4/2.7 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
090LT17FH6326
Zoro #
G5610035
UPC #
-
Country of Origin
China

Dimensions

Length Less Shaft
291 mm
Overall Length
341 mm
Shaft Dia.
24 mm
Shaft Length
50 mm
Shaft Diameter
24 mm
Frame Size
90L

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1745 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.4/2.7 A
Frame
90L
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Aluminum
Motor Mounting Position
Horizontal
Nominal Efficiency
87.5 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Inverter Rated
Yes
HP @ 50Hz
2 hp
Full Load Amps @ 50Hz
5.4/2.7 A
Duty Cycle
Continuous
RPM @ 50Hz
1745 rpm
Service Factor @ 50Hz
1.15
Voltage @ 50Hz
230/460
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Weight
44 lb
Kw
1.49
Number of Speeds
1
Insulation Class
F
Product Type
General Purpose Motor
Full Load Current @ 50 Hz
5.4/2.7 A
Nameplate Service Factor @ 60 Hz
1.15
Nameplate Horsepower @ 50 Hz
2 hp
Frequency
60/50 Hz
Nameplate RPM @ 50 Hz
1,755/1,435 RPM
Full Load Current @ 60 Hz
5.4/2.7 A
Efficiency Rating
NEMA Premium Efficiency
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Type
Ball
Inverter Rating
Inverter Rated
Nameplate Service Factor @ 50 Hz
1.15
Application
General Purpose
Mounting Position
Horizontal
Nameplate Voltage @ 50 Hz
190V AC, 208-230/460V AC, 380V AC

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, 1.49 kW, Nameplate RPM 1745 rpm, Frame 90L, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 5.4/2.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 1701-1800
