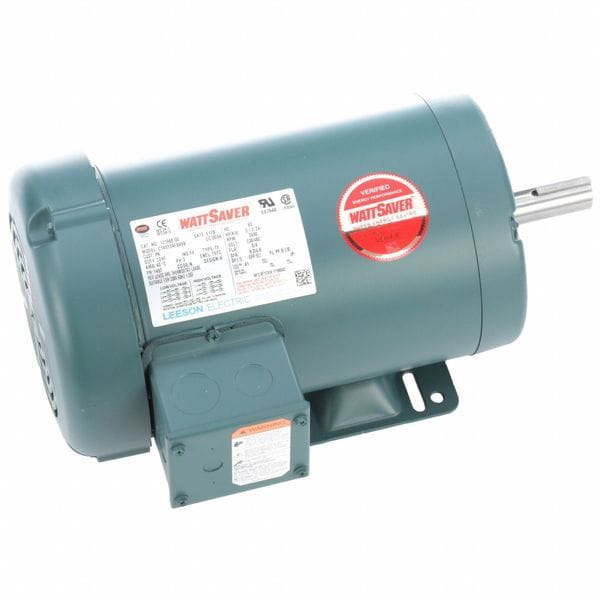

Three-Phase General Purpose Motor, 3 HP, 145T Frame, 230/460V AC Voltage, 3,490 Nameplate RPM

  • Mfr # 121968.00

  • Zoro # G207353913

product price:  $922.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
3,490
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.0/4.0 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
121968.00
Zoro #
G207353913
UPC #
691720332627
Country of Origin
United States

Dimensions

Overall Length
13 15/16 in
Shaft Dia.
7/8 in
Shaft Diameter
7/8 in
Frame Size
145T

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
3,490
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.0/4.0 A
Frame
145T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Air-Over
RPM Range
Over 3,600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
Reversible
Voltage Compatibility
230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
T
Nominal Efficiency
86.5 %
Standards
CSA, UL
NEMA Design
A
Weight
48 lb
Duty Cycle
Continuous
Removable Base
Permanently Lubricated
Motor Thermal Protection
T-Stat
Bearing Lubrication Type
Permanently Lubricated
Motor Enclosure Type
Totally Enclosed Air-Over
Application
General Purpose
NEMA Design Class
A
Frequency
60 Hz
Efficiency Rating
Premium Efficiency (IE3)
Frame Material
Steel
Number of Speeds
1
Product Type
General Purpose Motor
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
F
Shaft Design
Threaded
Full Load Current @ 60 Hz
8.0/4.0 A
Mounting Position
Horizontal
Bearing Type
Ball
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Nameplate RPM @ 50 Hz
2,935/2,965 RPM
Nameplate Service Factor @ 60 Hz
1.15

Description

General Purpose Motor, Three-Phase, Totally Enclosed Air-Over Motor Enclosure Design, 3 HP, Nameplate RPM 3,490, Frame 145T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.0/4.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection T-Stat, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Over 3,600, CSA, UL

Restrictions

This item has been restricted from sale in the following states: CA
