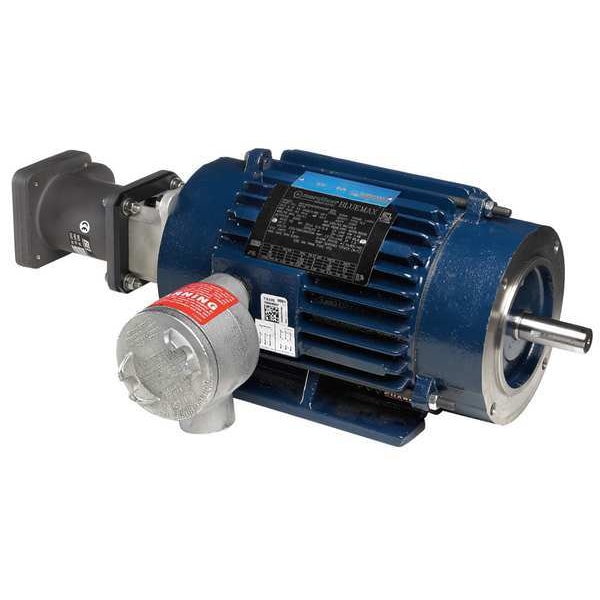

Vector Motor, 1 HP, 3600 rpm, 230/460V

  • Mfr # 143THEN8034
  • Zoro # G5700003
product price:
$
6,663.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
1
Nameplate RPM
1,756
Speed Range
2,000:1
Max. Speed
3,600 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
143THEN8034
Zoro #
G5700003
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
21 7/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/8 in
Shaft Diameter
7/8 in
Frame Size
143TC
Wire Rope Length
21 7/16 in
Length
21 7/16 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
1
Nameplate RPM
1,756
Speed Range
2,000:1
Max. Speed
3,600 RPM
Frame
143TC
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
NEMA Design
A
Phase
Three
Ins. Class
F
Insulation Feature
Max Guard
Warranty
3 yr
CC Number
CC003A
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Ambient Temperature
40 Degrees C
Motor Efficiency Group
NEMA Premium Efficient
Motor Service Factor
1
Motor Application
Crane
RPM Range
1,701-1,800
Finish
Blue
Motor Mounting Type
Rigid Base
Motor Frame Material
Cast Iron
Frame Material
Cast Iron
Encoder Shaft
5/8 in
Motor Bearings
Ball
Base
Rigid
Nominal Efficiency
85.5 %
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
Horizontal
Standards
UL Listed And CSA Certified
Max. Operating Frequency
90 Hz
Encoder Acceptable
Yes
Motor Shaft Design
Keyed
Full Load Amps
3.0/1.5 A
Duty
Continuous
Green Certification or Other Recognition
NEMA Premium(R) Rated
Conduit Box Position
F1
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Weight
86 lb
Max. Ambient Temp.
104 Degrees F
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
NEMA Design Class
A
Nameplate Service Factor @ 60 Hz
1
Sub Application
Severe Duty
Product Type
Vector Motor
Maximum Operating Frequency
90 Hz
Efficiency Rating
NEMA Premium Efficiency
Maximum Speed
3,600 RPM
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Frequency
60 Hz
Full Load Current @ 60 Hz
3.0/1.5 A
Bearing Type
Ball
Inverter Rated
Inverter Rated

Description

Vector Motor, Three Phase, Motor Design Three-Phase, 1 HP, Nameplate RPM 1,756, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 143TC Frame, Max. Speed 3,600 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
