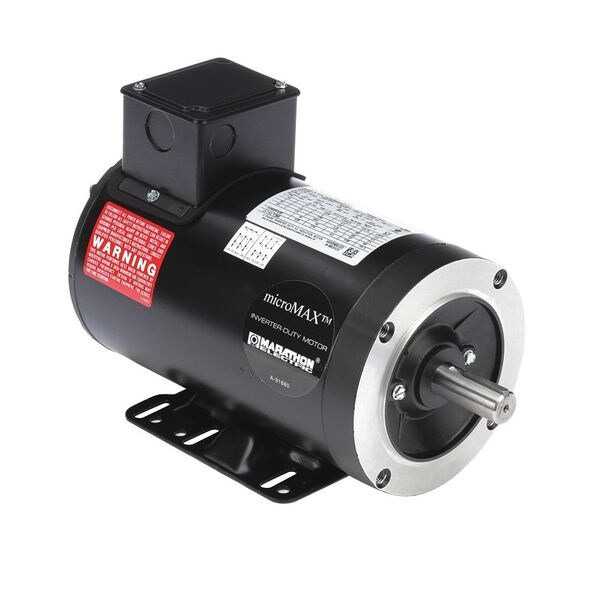

Vector Motor, 4.5 lb-ft, 1.5 HP, 230/460 V

  • Mfr # 145THTR5329

  • Zoro # G1747374

product price:  $537.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
1 1/2
Torque
4.5 ft-lb
Nameplate RPM
1,755
Speed Range
1,000:1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
145THTR5329
Zoro #
G1747374
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/8 in
Shaft Dia.
7/8 in
Overall Length
13 1/2 in
Manufacturers Warranty Length
3 Years
Length Less Shaft
11 3/8 in
Frame Size
145TC
Shaft Diameter
7/8 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
1 1/2
Torque
4.5 ft-lb
Nameplate RPM
1,755
Speed Range
1,000:1
Max. Speed
5,400 RPM
Frame
145TC
Voltage
230/460V AC
Motor Thermal Protection
None
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Full Load Amps
4.8/2.4 A
Encoder Acceptable
No
Ambient Temperature
40 Degrees C
Insulation Feature
Patented MAX GUARD
Ins. Class
H
Duty
Continuous
Motor Shaft Rotation
CW/CCW
Warranty
3 yr
Standards
CE, UL Recognized
Motor Service Factor
1
Motor Shaft Design
Keyed
Frame Material
Steel
Motor Mounting Type
Rigid Base
Motor Efficiency Group
Energy Efficient
RPM Range
1,701-1,800
Motor Mounting Position
Horizontal
Motor Bearings
Ball
Phase
Three
NEMA Design
A
Hz
60 Hz
Motor Application
Crane
Base
Removable
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Max. Operating Frequency
120 Hz
Nominal Efficiency
85.5 %
Motor Frame Material
Steel
Finish
Black
Max. Ambient Temp.
104 Degrees F
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Weight
49 lb
Conduit Box Location
Exterior
Conduit Box Position
F3
Bearing Type
Ball
Mounting Position
Horizontal
Shaft Design
Keyed
Insulation Class
H
Maximum Speed
5,400 RPM
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Frequency
60 Hz
Maximum Operating Frequency
120 Hz
Inverter Rated
Inverter Rated
Efficiency Rating
NEMA Energy Efficient
Product Type
Vector Motor
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
4.8/2.4 A
NEMA Design Class
A

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 1 1/2 HP, Nameplate RPM 1,755, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 145TC Frame, Torque 4.5 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
