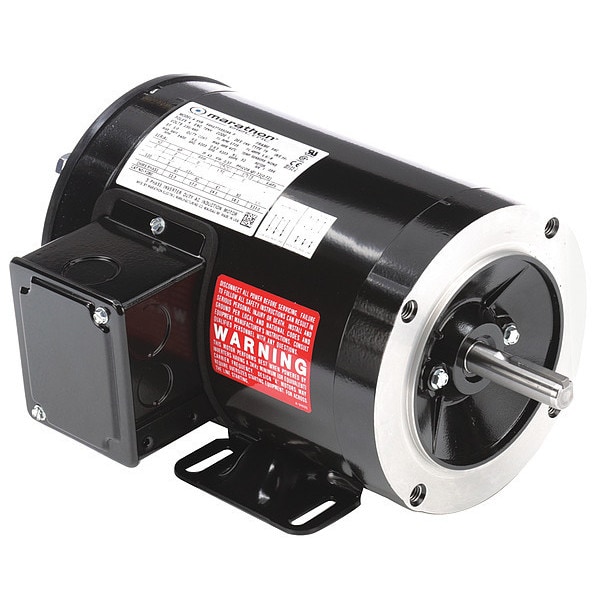

Vector Motor, 1.5 lb-ft, 1/2 HP, 230/460 V
Mfr # 056H17T15526
Zoro # G0529575
product price:Â $976.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
HP
1/2
Torque
1.5 ft-lb
Nameplate RPM
1,725
Speed Range
1,000:1
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
056H17T15526
Zoro #
G0529575
UPC #
-
Country of Origin
United States
Dimensions
Shaft Length
2 1/16 in
Overall Length
13 3/4 in
Shaft Dia.
5/8 in
Length Less Shaft
11 11/16 in
Manufacturers Warranty Length
3 Years
Encoder Shaft Dimensions
5/8 in x 1 3/4 in
Description
Vector Motor, Three Phase, Motor Design Three-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.6/0.80 A, 56C Frame, Torque 1.5 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
