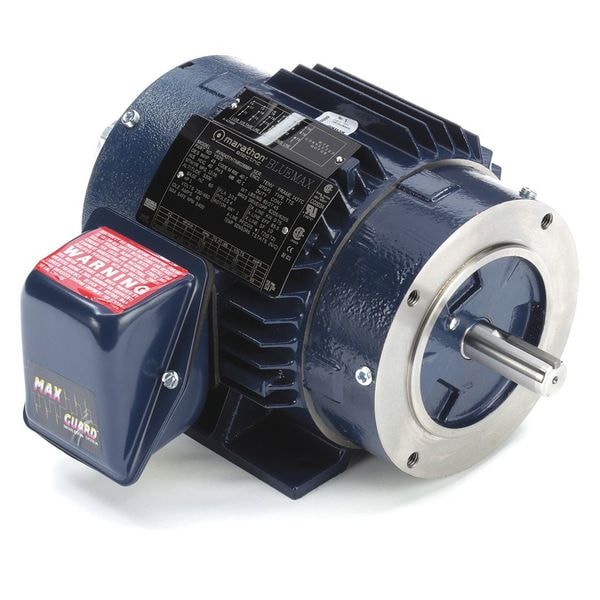

Vector Motor, 3-Phase, 1HP, 230/460V

  • Mfr # 143THTN8028
  • Zoro # G5499487
product price:
$
1,214.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
1
Nameplate RPM
1,756
Speed Range
2,000:1
Max. Speed
5,400 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
143THTN8028
Zoro #
G5499487
UPC #
-
Country of Origin
Multiple

Dimensions

Shaft Length
2 1/8 in
Shaft Dia.
7/8 in
Overall Length
13 11/16 in
Encoder Shaft Dimensions
5/8 in x 1 3/4 in
Shaft Diameter
7/8 in
Encoder Shaft Diameter
5/8 in
Frame Size
143TC
Encoder Shaft Length
1 3/4 in
Wire Rope Length
13 11/16 in
Length
13 11/16 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
1
Nameplate RPM
1,756
Speed Range
2,000:1
Max. Speed
5,400 RPM
Frame
143TC
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Base
Rigid
Motor Shaft Design
Keyed
Motor Mounting Type
Rigid Base
Motor Service Factor
1
RPM Range
1,701-1,800
Nominal Efficiency
85.5 %
Phase
Three
Motor Mounting Position
Horizontal
CC Number
CC003A
Finish
Enamel
Motor Application
Crane
Insulation Feature
Class F
NEMA Design
B
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Encoder Acceptable
Yes
Duty
Continuous
Motor Efficiency Group
NEMA Premium Efficient
Motor Shaft Rotation
CW/CCW
Hz
60 Hz
Motor Frame Material
Cast Iron
Warranty
3 yr
Ambient Temperature
40 Degrees C
Standards
CE, UL Recognized
Max. Operating Frequency
120 Hz
Motor Bearings
Ball
Encoder Shaft
5/8 in x 1-3/4 in
Frame Material
Cast Iron
Ins. Class
H
Full Load Amps
3.0/1.5 A
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Max. Ambient Temp.
104 Degrees F
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Weight
61 lb
Conduit Box Position
F1, F2
Inverter Rated
Inverter Rated
Shaft Design
Keyed
Full Load Current @ 60 Hz
3.0/1.5 A
NEMA Design Class
B
Product Type
Vector Motor
Efficiency Rating
NEMA Premium Efficiency
Bearing Type
Ball
Maximum Operating Frequency
120 Hz
Frequency
60 Hz
Maximum Speed
5,400 RPM
Ambient Temperature - Maximum
40 Degrees C
Frame Finish
Enamel-Coated
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Nameplate Service Factor @ 60 Hz
1
Insulation Class
H

Description

Vector Motor, Three Phase, Motor Design Three-Phase, 1 HP, Nameplate RPM 1,756, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 143TC Frame, Max. Speed 5,400 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW
