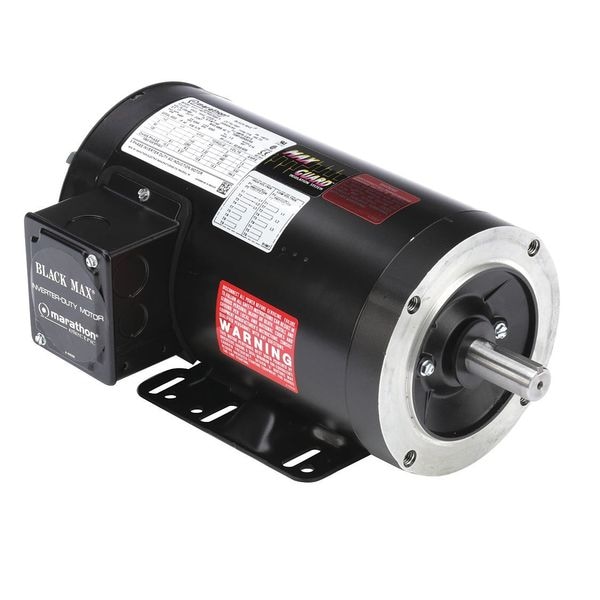

Vector Motor, 4.5 lb-ft, 1 HP, 230/460 V
Mfr # 145THTR5376
Zoro # G1499766
product price:Â
$
681.99
/ea
Additional $70.00 delivery surcharge applies per item.
Key Features
Motor Design
Three-Phase
HP
1
Torque
4.5 ft-lb
Nameplate RPM
1,145
Speed Range
1,000:1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 145THTR5376
- Zoro #
- G1499766
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Shaft Length
- 2 1/8 in
- Shaft Dia.
- 7/8 in
- Overall Length
- 16 1/16 in
- Manufacturers Warranty Length
- 3 Years
- Length Less Shaft
- 13 15/16 in
- Encoder Shaft Dimensions
- 5/8 in x 1 3/4 in
- Encoder Shaft Diameter
- 5/8 in
- Frame Size
- 145TC
- Encoder Shaft Length
- 1 3/4 in
- Shaft Diameter
- 7/8 in
- Wire Rope Length
- 16 1/16 in
- Length
- 16 1/16 in
Description
Vector Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,145, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.8/1.9 A, 145TC Frame, Torque 4.5 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
