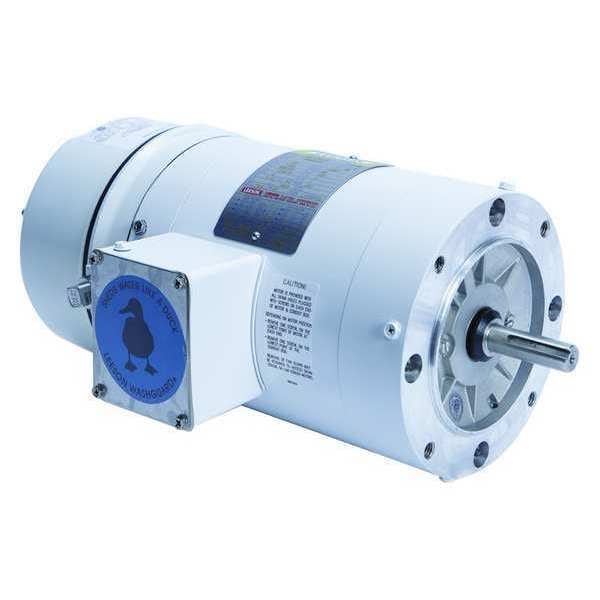

Leeson Washdown Brake Motor, 2 HP, 1740 RPM 122196.00 - main

Washdown Brake Motor, 2 HP, 1740 RPM

  • Mfr # 122196.00

  • Zoro # G4242141

product price: $1,767.08
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
145TC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
122196.00
Zoro #
G4242141
UPC #
691720347058
Country of Origin
United States

Dimensions

Length Less Shaft
17 in
Shaft Length
2 1/8 in
Shaft Dia.
7/8 in
Overall Length
19 1/2 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
145TC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Standards
BISSC, CE, CSA, UL
Ins. Class
F
Includes
10 ft-lb Brake
Nominal Efficiency
86.5 %
Frame Material
Epoxy Coated
Max. Ambient Temp.
40 Degrees C
Full Load Amps
5.8/2.9 A
Motor Service Factor
1.15
Motor Mounting Type
C-Face, Rigid Base
CC Number
CC005A
Motor Shaft Rotation
CW/CCW
Motor Application
General Purpose
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Nameplate RPM
1,745 RPM
Hz
60 Hz
Motor Bearings
Ball
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Mounting Position
Horizontal
NEMA Design
C
Motor Shaft Design
Keyed
Full Load Amps @ 50Hz
4.6-4.8/2.4 A
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Conduit Box Location
Exterior
Weight
57 lb
Usable @ 208V
Usable at 208V
Removable Base
No
Duty Cycle
Continuous
Finish
Epoxy-Coated
Endshield Material
Aluminum
Series
Washguard
Includes Brakes
Brake Included
Brake Rating
10 ft-lb
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design C, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
