  11. Washdown Motor, 1-1/2 HP, 1740 RPM

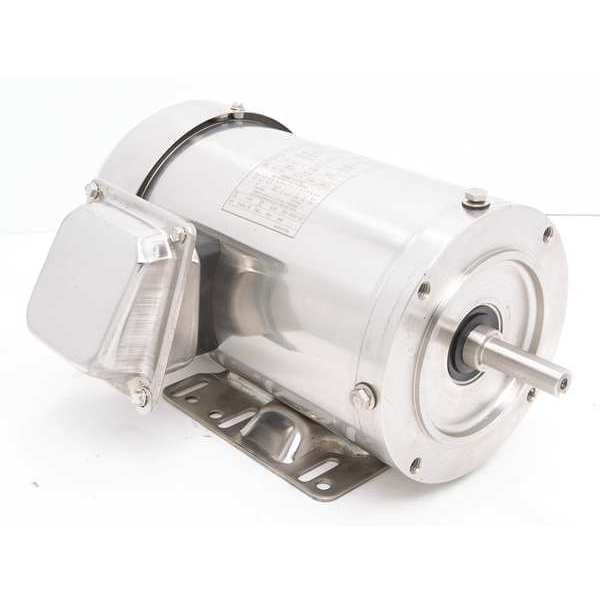

Leeson Washdown Motor, 1-1/2 HP, 1740 RPM 191561.00 - main

Washdown Motor, 1-1/2 HP, 1740 RPM

  • Mfr # 191561.00

  • Zoro # G4842866

product price: $1,415.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
191561.00
Zoro #
G4842866
UPC #
691720308271
Country of Origin
China

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
11 7/8 in
Shaft Length
1 7/8 in
Overall Length
13 3/4 in
Body Dia.
6.5 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 1/2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56HC
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame Material
Stainless Steel
Nominal Efficiency
86.5 %
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Hz
60/50 Hz
Full Load Amps
4.4/2.2 A
CC Number
CC005A
Ins. Class
F
Motor Service Factor
1.15
Motor Bearings
Ball
Motor Mounting Type
C-Face, Rigid Base
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
1,750 RPM
Motor Application
General Purpose
NEMA Design
B
Shaft Material
Stainless Steel
Motor Mounting Position
Horizontal
Standards
BISSC Approved, CE, CSA Certified, UL Recognized
Inverter Rated
Inverter Rated
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Shaft Design
Keyed
Duty Cycle
Continuous
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
RPM @ 50Hz
1,750 RPM
Usable @ 208V
Usable at 208V
HP @ 50Hz
1 1/2 hp
Weight
48 lb
Conduit Box Location
Exterior
Voltage @ 50Hz
190/380V AC
Finish
Unfinished
Service Factor @ 50Hz
1.15
Full Load Amps @ 50Hz
4.8-4.4/2.2 A
Series
Washguard
Inverter Rating
20:1
Conduit Box Position
F1/F2

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.4/2.2 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
