  11. Washdown Motor, 1/3 HP, 1740 RPM
Shop All DC Washdown Motors
Leeson

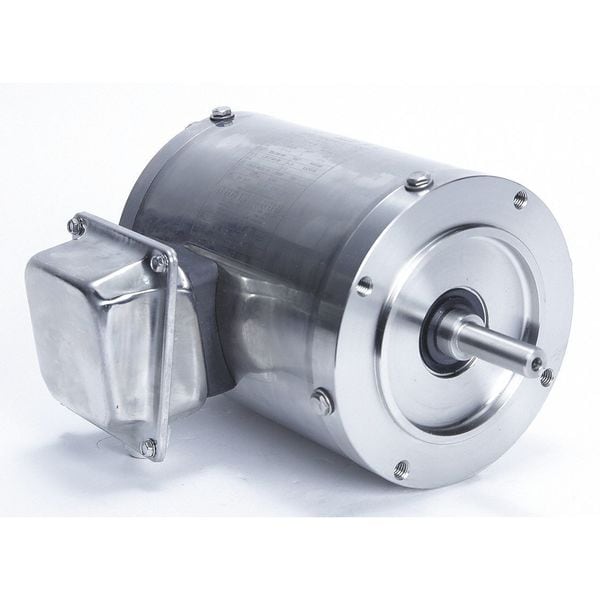

Washdown Motor, 1/3 HP, 1740 RPM

product price: $576.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design 3-Phase
  • Phase Three
  • HP 1/3
  • RPM Range 1,701-1,800
  • Voltage 208-230/460V AC
See all product information

Product Information

Dimensions

Shaft Length 1 7/8 in
Shaft Dia. 5/8 in
Length Less Shaft 8 1/2 in
Body Dia. 6.5 in
Overall Length 9 3/4 in
Manufacturers Warranty Length 1 yr
Bolt Circle Dia. 5 7/8 in

Details

Item Washdown Motor
Motor Design 3-Phase
Phase Three
HP 1/3
RPM Range 1,701-1,800
Voltage 208-230/460V AC
Frame 56C
Motor Frame Material Stainless Steel
Motor Thermal Protection None
Motor Enclosure Design Totally Enclosed Nonventilated
Full Load Amps 1.2-1.3/0.65 A
Motor Mounting Type Face
Hz 60/50 Hz
Nameplate RPM 1,740
Motor Application Washdown
Frame Material Stainless Steel
Max. Ambient Temp. 40 Degrees C
Motor Shaft Rotation CWSE
Motor Service Factor 1.15
Motor Bearings Ball
Nominal Efficiency 78.5 %
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Ins. Class F
Standards BISSC Approved, CE, CSA Certified, UL Recognized
Motor Mounting Position Horizontal
Motor Shaft Design Keyed
NEMA Design B
Shaft Material Stainless Steel
HP @ 50Hz 1/3
Usable @ 200V No
Weight 30 lb
Usable @ 208V Yes
Duty Cycle Continuous
RPM @ 50Hz 1,740
No. of Speeds 1
Voltage @ 50Hz 460V AC
Conduit Box Location Exterior
Full Load Amps @ 50Hz 1.2-1.3/0.65 A
Finish Unfinished
Service Factor @ 50Hz 1.15

Description

Washdown Motor, Three Phase, Motor Design 3-Phase, 1/3 HP, Nameplate RPM 1,740, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.2-1.3/0.65 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face, Motor Mounting Position Horizontal
