  6. Washdown Motor, 1 HP, 143JM Frame, 16" L

This item is Discontinued.

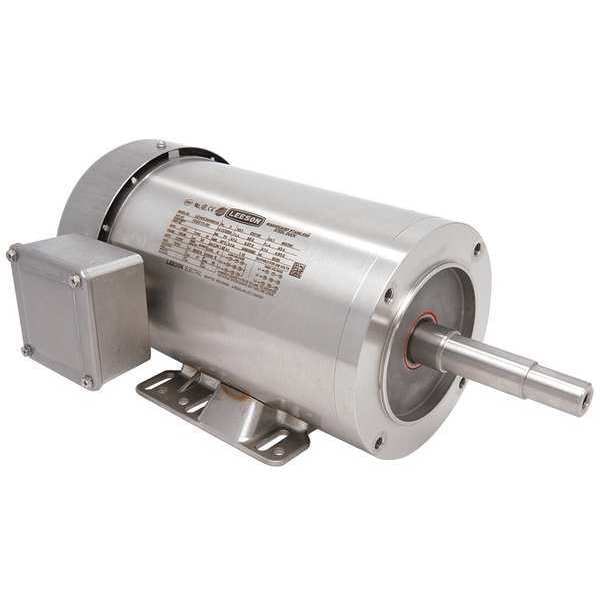

Leeson Washdown Motor, 1 HP, 143JM Frame, 16" L 122208.00

Washdown Motor, 1 HP, 143JM Frame, 16" L (Discontinued)

  • Mfr # 122208.00
  • Zoro # G0123521
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
122208.00
Zoro #
G0123521
UPC #
-
Country of Origin
United States

Dimensions

Length Less Shaft
11 3/4 in
Body Dia.
6 19/32 in
Shaft Dia.
7/8 in
Overall Length
16 in
Shaft Length
4 1/4 in

Details

Item
Washdown Close Coupled Pump Motor
Motor Design
3-Phase
Phase
3
HP
1
RPM Range
1701-1800
Voltage
230/460
Frame
143JM
Motor Frame Material
Stainless Steel
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Shaft Design
Keyed and Drilled On Center
Motor Shaft Rotation
CWSE
Nominal Efficiency
85.5%
Max. Ambient Temp.
40 Degrees C
NEMA Design
B
Duty
Continuous
Endshields
Stainless steel
Frame Material
Stainless Steel
Inverter Rated
No
Motor Application
Washdown
Application
Washguard
Hz
60/50
Ins. Class
F
Motor Mounting Position
Horizontal
CC Number
CC005A
Motor Service Factor
1.15
Drain Plugs
None
Nameplate RPM
1725
Motor Bearings
Ball
Full Load Amps
3.2/1.6
Conduit Box
Oversized Stainless Steel BICB and Threaded Cover with O Ring
Standards
UL (E49747), CSA (LR2025)
Shaft Material
303 Stainless Steel
Motor Mounting Type
Face/Base
Voltage Compatibility
460, 230/460, 220-230/460
Includes
Removable Hydrophobic Breathers In Opposite Shaft Endbell

Description

Washdown Close Coupled Pump Motor, 3 Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1725, Voltage 230/460, Full Load Amps 3.2/1.6, 143JM Frame, 60/50 Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, NEMA Design B, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal, Motor Frame Material Stainless Steel
