  11. Washdown Motor, 1/2 HP, 1725 rpm, 115/230V

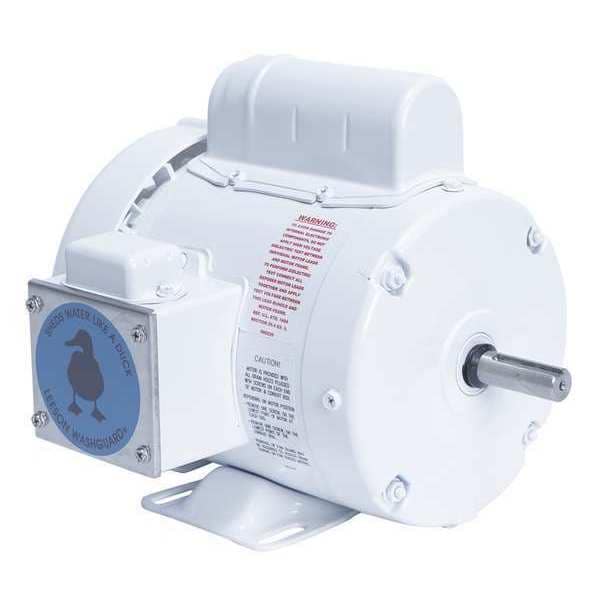

Leeson Washdown Motor, 1/2 HP, 1725 rpm, 115/230V 112431.00 - main

Washdown Motor, 1/2 HP, 1725 rpm, 115/230V

  • Mfr # 112431.00

  • Zoro # G4242135

product price: $474.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
RPM Range
1,701-1,800
Voltage
115/230V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
112431.00
Zoro #
G4242135
UPC #
691720010822
Country of Origin
United States

Dimensions

Overall Length
10 1/2 in
Shaft Dia.
5/8 in
Length Less Shaft
8 9/16 in
Body Dia.
7.38 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr

Details

Item
Washdown Motor
Motor Design
Capacitor-Start
Phase
Single
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Max. Ambient Temp.
40 Degrees C
Standards
BISSC, CE, CSA, UL
Motor Shaft Design
Keyed
Inverter Rated
No
Duty
Continuous
Motor Bearings
Ball
Endshields
Cast Aluminum
Conduit Box
Cast Aluminum with Buna-N Gasketed Cover
Nominal Efficiency
66 %
Motor Mounting Position
Horizontal
Frame Material
Rolled steel
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1.15
Shaft Material
Stainless Steel
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Full Load Amps
8.8/4.4 A
Nameplate RPM
1,725 RPM
NEMA Design
N
Motor Mounting Type
Rigid Base
Hz
60 Hz
Application
Washguard
Motor Application
General Purpose
Ins. Class
F
Conduit Box Location
Exterior
Weight
27 lb
Usable @ 208V
Usable at 208V
Removable Base
No
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Finish
Epoxy-Coated
Duty Cycle
Continuous
Endshield Material
Aluminum
Series
Washguard
Conduit Box Position
F1

Description

Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.8/4.4 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design N, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
