  11. Washdown Motor, 1/2 HP, 1725 RPM
Shop All DC Washdown Motors
Leeson

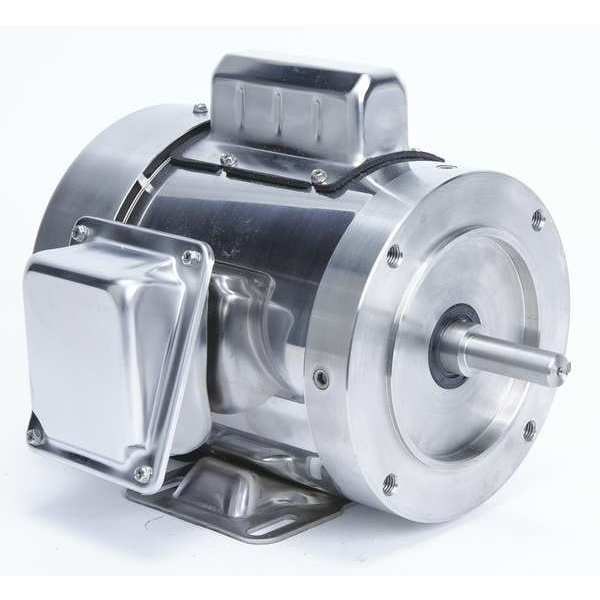

Washdown Motor, 1/2 HP, 1725 RPM

product price: $704.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Capacitor-Start
  • Phase Single
  • HP 1/2
  • RPM Range 1,701-1,800
  • Voltage 115/230V AC
See all product information

Product Information

Dimensions

Length Less Shaft 9 1/4 in
Shaft Length 1 7/8 in
Shaft Dia. 5/8 in
Overall Length 11 1/8 in
Body Dia. 7.19 in
Manufacturers Warranty Length 1 yr
Bolt Circle Dia. 5 7/8 in

Details

Item Washdown Motor
Motor Design Capacitor-Start
Phase Single
HP 1/2
RPM Range 1,701-1,800
Voltage 115/230V AC
Frame 56C
Motor Frame Material Stainless Steel
Motor Thermal Protection None
Motor Enclosure Design Totally Enclosed Fan-Cooled
Motor Bearings Ball
Frame Material Stainless Steel
Motor Service Factor 1.15
Nameplate RPM 1,725
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Full Load Amps 8.2/4.1 A
Nominal Efficiency 61 %
Motor Application Washdown
Motor Mounting Type Face/Base
Motor Shaft Rotation CCW, CW
Hz 60 Hz
Ins. Class F
Max. Ambient Temp. 40 Degrees C
Motor Shaft Design Keyed
Motor Mounting Position Horizontal
Shaft Material Stainless Steel
Standards CE, CSA Certified, UL Recognized
NEMA Design N
Duty Cycle Continuous
Conduit Box Location Exterior
Finish Unfinished
Weight 32 lb
Usable @ 200V No
Usable @ 208V No
No. of Speeds 1

Description

Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.2/4.1 A, 56C Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design N, Motor Shaft Rotation CCW, CW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal
