  11. Washdown Motor, 1/2 HP, 56C Frame, 60/50 Hz

This item is Discontinued.

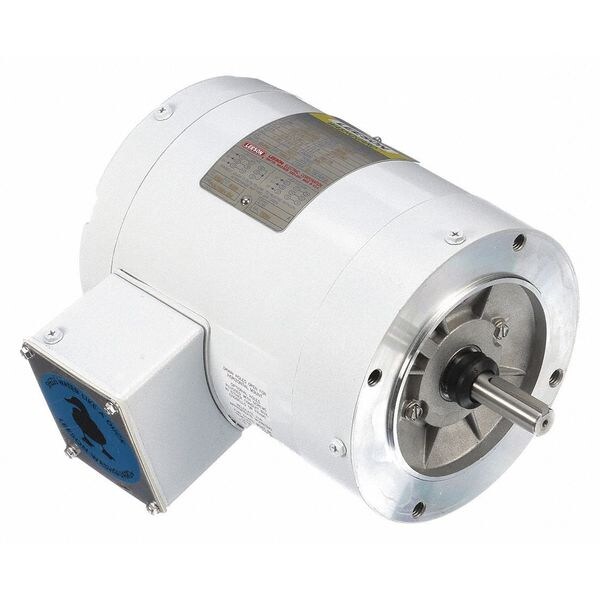

Leeson Washdown Motor, 1/2 HP, 56C Frame, 60/50 Hz 116643.00

Washdown Motor, 1/2 HP, 56C Frame, 60/50 Hz (Discontinued)

  • Mfr # 116643.00
  • Zoro # G4608978
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
116643.00
Zoro #
G4608978
UPC #
691720343470
Country of Origin
United States

Dimensions

Shaft Length
1-15/16"
Shaft Dia.
5/8"
Length Less Shaft
8-5/8"

Details

Item
Washdown Motor
Motor Design
3-Phase
Phase
3
HP
1/2
RPM Range
3001-3600
Voltage
230/460
Frame
56c
Motor Frame Material
Rolled Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Nonventilated
Frame Material
Rolled steel
Motor Shaft Rotation
CWSE
Motor Service Factor
1.15
Motor Bearings
Ball
Motor Application
Washdown
Full Load Amps
1.7/0.90
Ins. Class
F
Voltage Compatibility
460, 230/460, 220-230/460
Motor Mounting Type
Face
Hz
60/50
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
82.5%
Application
General Purpose
Nameplate RPM
3450

Description

Washdown Motor, 3 Phase, Motor Design 3-Phase, 1/2 HP, Nameplate RPM 3450, Voltage 230/460, Full Load Amps 1.7/0.90, 56C Frame, 60/50 Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face, Motor Frame Material Rolled Steel
