  6. Washdown Motor, 1/3 HP, 1725, 56C, 575V

This item is Discontinued.

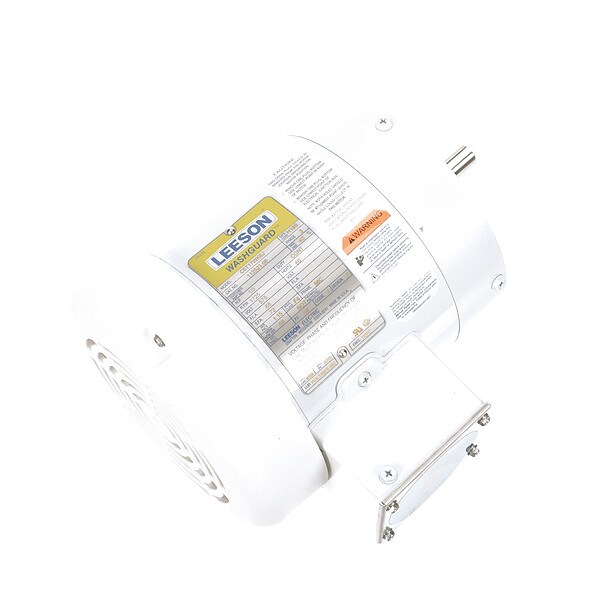

Leeson Washdown Motor, 1/3 HP, 1725, 56C, 575V 112521.00

Washdown Motor, 1/3 HP, 1725, 56C, 575V (Discontinued)

  • Mfr # 112521.00
  • Zoro # G800722956
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
112521.00
Zoro #
G800722956
UPC #
691720102886
Country of Origin
United States

Dimensions

Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr
Overall Length
10 3/8 in
Shaft Length
1 7/8 in
Body Dia.
7.3 in
Shaft Dia.
5/8 in
Length Less Shaft
8 7/16 in

Details

Item
Washdown Motor
Motor Design
3-Phase
Phase
Three
HP
1/3
RPM Range
1,701-1,800
Voltage
575V AC
Frame
56C
Motor Frame Material
Rolled Steel
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Usable @ 200V
No
Removable Base
No
Finish
Unfinished
Hz
60
Motor Service Factor
1.2
Full Load Amps
0.68 A
Conduit Box Location
Exterior
Motor Bearings
Ball
Nominal Efficiency
68 %
Drain Plugs
(1) Drain Plugs In Conduit Box, (1) Drain Plugs In Each End Bell
Motor Mounting Position
Horizontal
Motor Shaft Rotation
CW/CCW
Motor Application
Washdown
Usable @ 208V
No
NEMA Design
B
Standards
CSA Certified, UL Recognized, USDA
Shaft Material
Stainless Steel
Ins. Class
F
Weight
25 lb
Bearing Protection
Shaft Shields
Motor Shaft Design
Keyed
Voltage Compatibility
575V AC
Nameplate RPM
1,725
Max. Ambient Temp.
104 Degrees F
Duty Cycle
Continuous
Motor Mounting Type
Rigid Base
No. of Speeds
1

Description

Washdown Motor, Three Phase, Motor Design 3-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 575V AC, Full Load Amps 0.68 A, 56C Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base
