  11. Washdown Motor, 1/3 HP, 56C Frame, 60 Hz

This item is Discontinued.

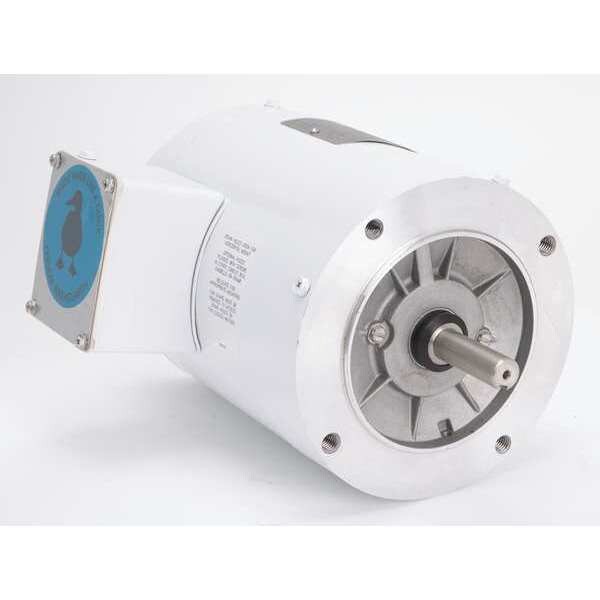

Leeson Washdown Motor, 1/3 HP, 56C Frame, 60 Hz 113954.00

Washdown Motor, 1/3 HP, 56C Frame, 60 Hz (Discontinued)

  • Mfr # 113954.00
  • Zoro # G4608987
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
113954.00
Zoro #
G4608987
UPC #
691720013045
Country of Origin
United States

Dimensions

Shaft Length
1 7/8 in
Length Less Shaft
7 5/8 in
Shaft Dia.
5/8 in
Overall Length
9 9/16 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr

Details

Item
Washdown Motor
Motor Design
3-Phase
Phase
Three
HP
1/3
RPM Range
1,701-1,800
Voltage
208-230/460V AC
Frame
56C
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Nonventilated
Nominal Efficiency
72 %
Motor Mounting Type
Face
Frame Material
Rolled steel
Hz
60 Hz
Application
General Purpose
Full Load Amps
0.65 A
Nameplate RPM
1,725
Motor Application
Washdown
Motor Shaft Rotation
CCW, CW
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Ins. Class
F
Motor Service Factor
1.15
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Horizontal
NEMA Design
B
Standards
BISSC, CE, CSA, UL
Usable @ 208V
Yes
Removable Base
No
No. of Speeds
1
Duty Cycle
Continuous
Weight
22 lb
Finish
Epoxy
Usable @ 200V
No
Conduit Box Location
Exterior

Description

Washdown Motor, Three Phase, Motor Design 3-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 0.65 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CCW, CW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face
