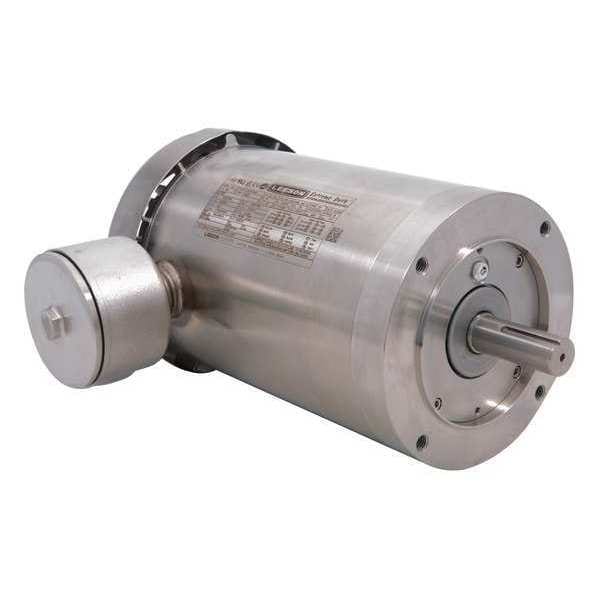

Washdown Motor, 2 HP, 143TC Frame
Mfr # 121911.00
Zoro # G7111995
product price: $1,789.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
143TC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
121911.00
Zoro #
G7111995
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Length
13 3/16 in
Body Dia.
6.56 in
Shaft Dia.
7/8 in
Shaft Length
2 in
Length Less Shaft
11 3/16 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr
Description
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 143TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
