  11. Pool Pump Motor, Permanent Split Capacitor, 1 1/2 HP, 56J Frame, 3,450 Nameplate RPM
Century

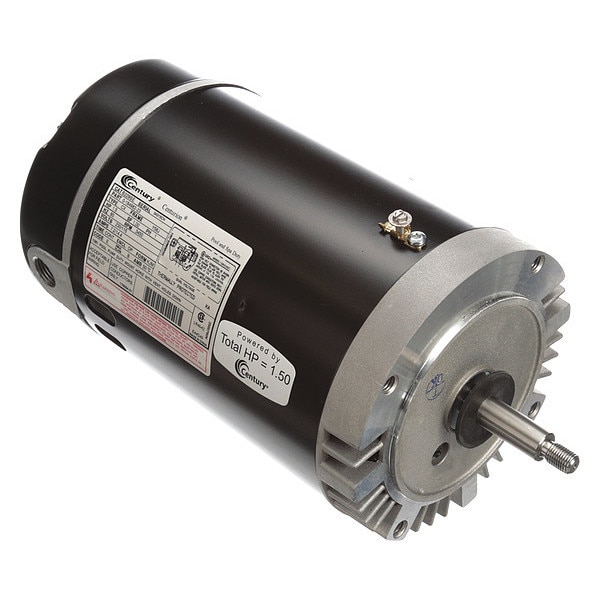

Pool Pump Motor, Permanent Split Capacitor, 1 1/2 HP, 56J Frame, 3,450 Nameplate RPM

Century Pool Pump Motor, Permanent Split Capacitor, 1 1/2 HP, 56J Frame, 3,450 Nameplate RPM B229SE
Tap to zoom
Hover or click to zoom
$238.92
  • Item: Pool Pump Motor
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Open Dripproof
See full product details
This item ships free.
Total: $238.92

Century #B229SE Specifications

  • Item: Pool Pump Motor
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Open Dripproof
  • HP: 1 1/2
  • Motor Service Factor: 1
  • RPM Range: 3,001-3,600
  • Nameplate RPM: 3,450
  • Frame: 56J
  • Motor Shaft Rotation: CCWSE
  • Phase: Single
  • Voltage: 115/230V AC
  • Motor Mounting Type: Face
  • Full Load Amps: 14.4/7.2
  • Ambient Temperature: 50 Degrees C
  • Motor Bearings: Ball
  • Shaft Dia.: 5/8 in
  • Motor Application: Pump
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
  • Motor Thermal Protection: Auto
  • Shaft Length: 2 9/16 in
  • Finish: Black
  • Standards: CSA (LR43341/LR94643), UL (E44549/E25022), UL 1081 Approvable
  • Motor Flange Material: Aluminum
  • Motor Efficiency Group: Standard Efficient
  • Shaft: Threaded 7/16"-20 UNF-2A RH 11/16 in From End
  • Hz: 60
  • Ins. Class: B
  • Shaft Material: 303 Stainless Steel
  • Motor Sub Application: Pool and Spa Pump
  • Max. Ambient Temp.: 50 Degrees C
  • Height: 9 in
  • Usable @ 200V: No
  • Bolt Circle Dia.: 5 13/16 in
  • Motor Mounting Position: Horizontal
  • Length Less Shaft: 11 5/16 in
  • Weight: 25 lb
  • Motor Frame Material: Steel
  • Motor Shaft Design: Threaded
  • No. of Speeds: 1
  • Overall Length: 13 15/16 in
  • Duty Cycle: Continuous
  • Usable @ 208V: No
  • Body Dia.: 6.4 in
  • Country of Origin (subject to change): China

Description

Pool Pump Motor, Motor Enclosure Design Open Dripproof, Motor Thermal Protection Auto, Phase Single, Standards CSA (LR43341/LR94643), UL (E44549/E25022), UL 1081 Approvable

Restrictions and Compliance

  • This item has been restricted from sale in the following states: AZ, CA, FL
