  11. Washdown Motor, 2 HP, 3450 RPM

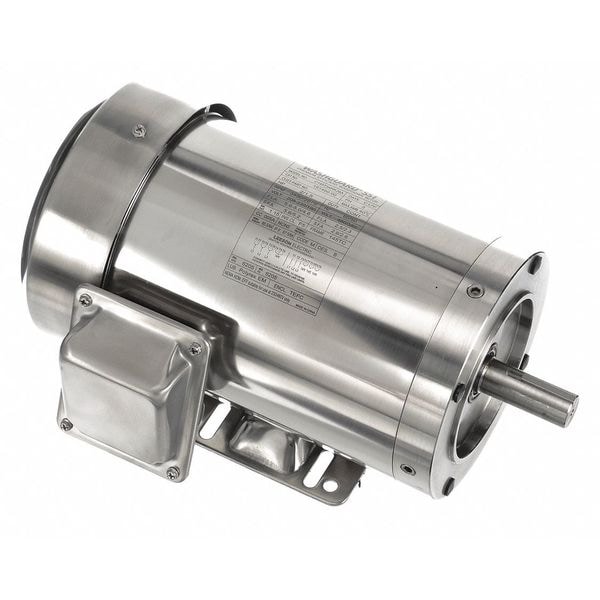

Leeson Washdown Motor, 2 HP, 3450 RPM 191490.00 - main

Washdown Motor, 2 HP, 3450 RPM

  • Mfr # 191490.00

  • Zoro # G4447567

product price: $1,287.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
145TC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
191490.00
Zoro #
G4447567
UPC #
691720245552
Country of Origin
China

Dimensions

Shaft Length
2 in
Shaft Dia.
7/8 in
Length Less Shaft
11 5/8 in
Body Dia.
6.5 in
Overall Length
13 5/8 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
145TC
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Application
General Purpose
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Frame Material
Stainless Steel
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
C-Face, Rigid Base
Nominal Efficiency
85.5 %
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Hz
60/50 Hz
Nameplate RPM
3,490 RPM
CC Number
CC005A
Ins. Class
F
Full Load Amps
5.0/2.5 A
Motor Bearings
Ball
Motor Mounting Position
Horizontal
Shaft Material
Stainless Steel
Motor Shaft Design
Keyed
Inverter Rated
Inverter Rated
Green Certification or Other Recognition
NEMA Premium(R) Rated
Standards
CE, CSA Certified, UL Recognized
NEMA Design
B
Conduit Box Location
Exterior
No. of Speeds
1
Weight
47 lb
Finish
Unfinished
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Series
Washguard
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.0/2.5 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
