Shop DAYTON

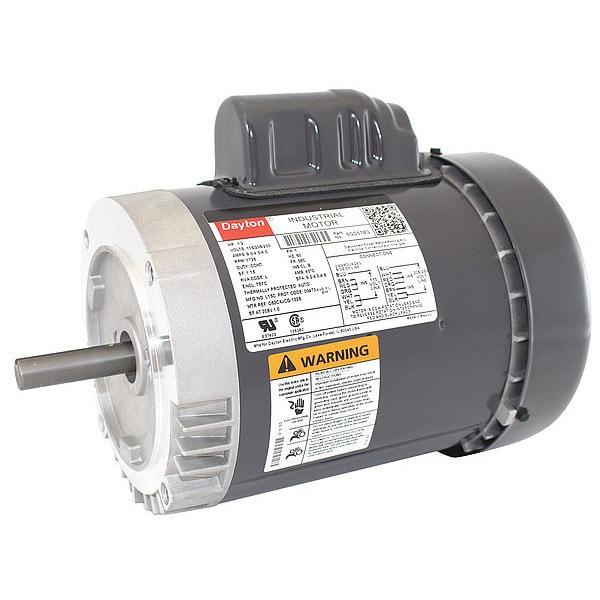

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56C Frame

  • Mfr # 5GD57

  • Zoro # G0370176

product price:  $354.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5GD57
Zoro #
G0370176
UPC #
190735343807
Country of Origin
Multiple

Dimensions

Length Less Shaft
9 1/2 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Overall Length
11 3/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
5/8 in
Wire Rope Length
11 3/8 in
Frame Size
56C

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Frame
56C
Motor Thermal Protection
Auto
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
1,725 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified (156060), UL Thermal Protection-Component Recognition E37403
Frame Material
Steel
Motor Bearings
Ball
Motor Efficiency Group
Standard Efficient
Nominal Efficiency
60.7 %
Duty
Continuous
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Full Load Amps
9.0/4.3-4.5 A
Hz
60 Hz
Phase
Single
RPM Group
1701-1800
Footnotes
51
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Insulation Class
B
Shaft Design
Keyed
Manufacturers Warranty
1 yr
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1.15
Number of Speeds
1
Full Load Current @ 60 Hz
9.0/4.3-4.5 A
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Efficiency Rating
Standard Efficiency (IE1)
Bearing Type
Ball
Product Type
General Purpose Motor

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 9.0/4.3-4.5 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
