  11. Washdown Motor, 2HP, Rigid Base, 145T Frame

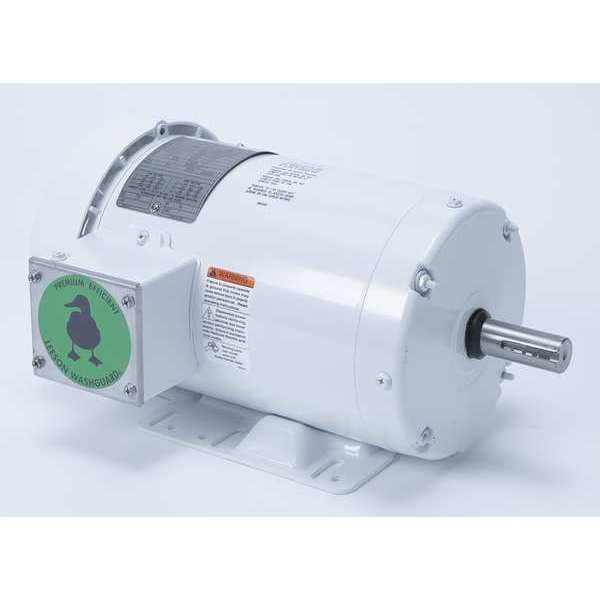

Leeson Washdown Motor, 2HP, Rigid Base, 145T Frame 121866.00 - main

Washdown Motor, 2HP, Rigid Base, 145T Frame

  • Mfr # 121866.00

  • Zoro # G4609221

product price: $775.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
121866.00
Zoro #
G4609221
UPC #
691720005415
Country of Origin
United States

Dimensions

Shaft Dia.
7/8 in
Shaft Length
2 3/8 in
Length Less Shaft
11 9/16 in
Body Dia.
7.38 in
Overall Length
13 15/16 in
Manufacturers Warranty Length
1 yr

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
145T
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Ins. Class
F
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1.15
CC Number
CC005A
Nameplate RPM
1,745 RPM
Nominal Efficiency
86.5 %
Motor Mounting Type
Rigid Base
Motor Bearings
Ball
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Application
General Purpose
Full Load Amps
5.8/2.9 A
Max. Ambient Temp.
40 Degrees C
Frame Material
Rolled steel
Hz
60/50 Hz
NEMA Design
B
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal
Green Certification or Other Recognition
NEMA Premium(R) Rated
Standards
BISSC Approved, CE, CSA Certified, UL Recognized, USDA Approved
Voltage @ 50Hz
460V AC
Weight
48 lb
Conduit Box Location
Exterior
Usable @ 208V
Not Usable at 208V
HP @ 50Hz
2 hp
Finish
Epoxy-Coated
No. of Speeds
1
Service Factor @ 50Hz
1.15
RPM @ 50Hz
1,745 RPM
Duty Cycle
Continuous
Full Load Amps @ 50Hz
5.8/2.9 A
Usable @ 200V
Not Usable at 200V
Endshield Material
Aluminum
Series
Washguard
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 145T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
