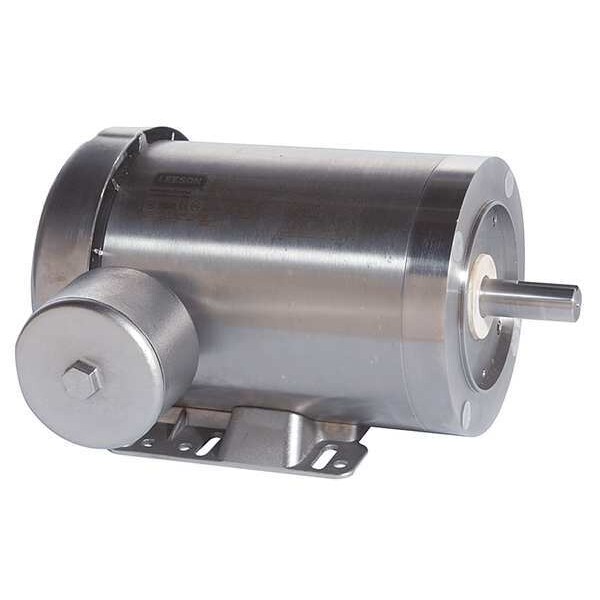

Washdown Motor, 3 Ph, TENV, 3/4 HP, 3450 rpm

LEESON| Zoro #: G1953515| Mfr #: 117120.00

$648.66 /ea

This item ships free. DetailsStandard ground shipping
Details:
Item: Washdown Motor
Shaft Length: 1-7/8"
Frame Material: Stainless Steel
Save 15%. Sign up for Z-mail.

Technical Specifications

Zoro #: G1953515 Mfr #: 117120.00
Item: Washdown MotorShaft Length: 1-7/8"
Frame Material: Stainless SteelMotor Application: Washdown
Duty: ContinuousMotor Thermal Protection: None
Footnotes: 8, 11RPM Range: 3001-3600
Overall Length: 10-1/2"Standards: UL Recognized (E57948), CSA Certified (LR33543), CSA Energy Efficiency Verification Program (EEV 78720-1), BISSC (769)
Voltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460Drain Plugs: None
Endshields: Stainless steelBody Dia.: 6-9/16"
Application: Chemical ProcessingMotor Design: 3-Phase
Phase: 3Motor Shaft Rotation: CW/CCW
Motor Enclosure Design: Totally Enclosed NonventilatedFrame: 56c
Motor Mounting Type: Face/BaseFull Load Amps: 2.6-2.4/1.2
Hz: 60/50Motor Bearings: Ball
Inverter Rated: YesHP: 3/4
NEMA Design: BShaft Material: 303 Stainless Steel
Ins. Class: FIncludes: Frame, Base, Conduit Box Cover Endshields and Bearing Carrier Cover
Motor Shaft Design: KeyedMax. Ambient Temp.: 40 Degrees C
Conduit Box: Oversized Stainless Steel BICB and Threaded Cover with O RingShaft Dia.: 5/8"
Motor Service Factor: 1.15Voltage: 208-230/460
Nameplate RPM: 3450Length Less Shaft: 8-5/8"
Nominal Efficiency: 84.0%Country of Origin (subject to change): United States

Product Description

Washdown Motor, 3-Phase, 3/4 HP, 3450 Nameplate RPM, Voltage 208-230/460, Phase 3, 56C Frame, Totally Enclosed Nonventilated, Full Load Amps 2.6-2.4/1.2, 60/50 Hz, Motor Thermal Protection None, F Ins. Class, Motor Service Factor 1.15, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 10-1/2 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Body Dia. 6-9/16 In., Length Less Shaft 8-5/8 In., Continuous Duty, Frame Material Stainless Steel
