This item is Discontinued.

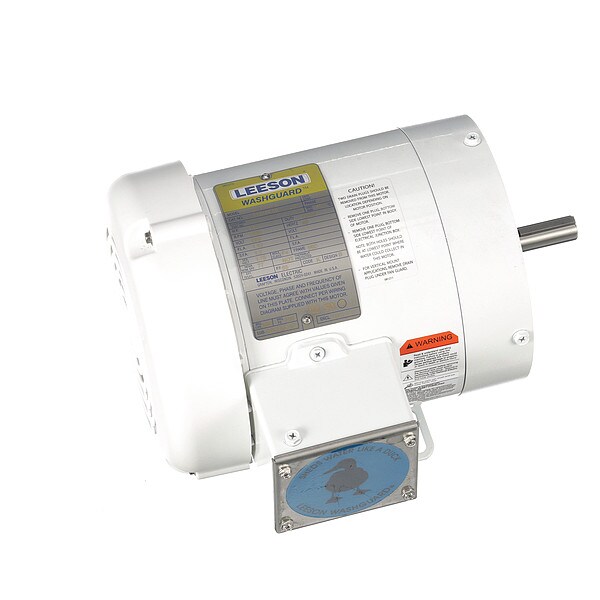

Leeson Washdown Motor, 3/4 HP, 1725, 56C, 575V 112484.00

Washdown Motor, 3/4 HP, 1725, 56C, 575V (Discontinued)

  • Mfr # 112484.00
  • Zoro # G100722984
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
112484.00
Zoro #
G100722984
UPC #
691720010914
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in
Body Dia.
7.3 in
Overall Length
10 7/8 in
Shaft Length
1 7/8 in
Length Less Shaft
8 15/16 in

Details

Item
Washdown Motor
Motor Design
3-Phase
Phase
Three
HP
3/4
RPM Range
1,701-1,800
Voltage
575V AC
Frame
56C
Motor Frame Material
Rolled Steel
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Voltage Compatibility
575V AC
Shaft Material
Stainless Steel
Motor Service Factor
1.2
Removable Base
No
Usable @ 200V
No
Duty Cycle
Continuous
Ins. Class
F
Motor Bearings
Ball
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal
Nameplate RPM
1,725
Nominal Efficiency
77 %
Standards
CSA Certified, UL Recognized, USDA
Full Load Amps
1.10 A
Motor Shaft Rotation
CW/CCW
Finish
Unfinished
NEMA Design
B
Max. Ambient Temp.
104 Degrees F
Motor Application
Washdown
No. of Speeds
1
Motor Mounting Type
Rigid Base
Hz
60
Bearing Protection
Shaft Shields
Usable @ 208V
No
Conduit Box Location
Exterior
Weight
27 lb
Drain Plugs
(1) Drain Plugs In Conduit Box, (1) Drain Plugs In Each End Bell

Description

Washdown Motor, Three Phase, Motor Design 3-Phase, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 575V AC, Full Load Amps 1.10 A, 56C Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base
