  11. Washdown Motor, 5HP, 184JM Frame, 16-3/4"L

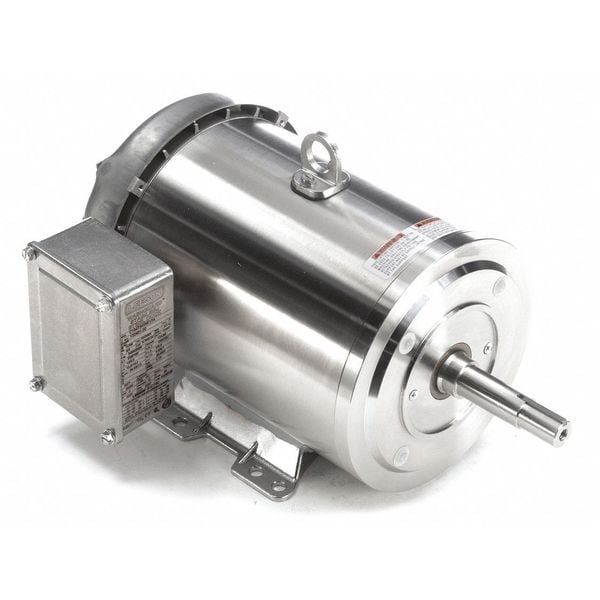

Leeson Washdown Motor, 5HP, 184JM Frame, 16-3/4"L 132451.00 - main

Washdown Motor, 5HP, 184JM Frame, 16-3/4"L

  • Mfr # 132451.00

  • Zoro # G0123573

product price: $2,544.03
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
132451.00
Zoro #
G0123573
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
16 3/4 in
Length Less Shaft
12 1/2 in
Body Dia.
8.38 in
Shaft Length
4 1/4 in
Shaft Dia.
7/8 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
184JM
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Position
Horizontal
Nameplate RPM
3,495 RPM
Motor Application
General Purpose
CC Number
CC005A
Motor Bearings
Ball
Motor Mounting Type
C-Face, Rigid Base
Endshields
Stainless steel
Duty
Continuous
Inverter Rated
Inverter Rated
Full Load Amps
12.0/6.0 A
Application
Washguard
Nominal Efficiency
88.5 %
Ins. Class
F
Conduit Box
Oversized Stainless Steel BICB and Threaded Cover with O Ring
Motor Shaft Rotation
CW/CCW
Frame Material
Stainless Steel
Motor Shaft Design
Keyed
Hz
60/50 Hz
Standards
BISSC, CE, CSA, UL
Max. Ambient Temp.
40 Degrees C
NEMA Design
B
Drain Plugs
None
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Shaft Material
Stainless Steel
Includes
Removable Hydrophobic Breathers In Opposite Shaft Endbell
Motor Service Factor
1.15
Green Certification or Other Recognition
NEMA Premium(R) Rated
No. of Speeds
1
Duty Cycle
Continuous
Usable @ 200V
Usable at 200V
Voltage @ 50Hz
460V AC
Endshield Material
Stainless Steel
Usable @ 208V
Usable at 208V
Full Load Amps @ 50Hz
12.0/6.0 A
Removable Base
No
Finish
Unfinished
Weight
100 lb
Inverter Rating
10:1
Series
Washguard
Conduit Box Position
F1/F2

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,495 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.0/6.0 A, 184JM Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
