Leeson

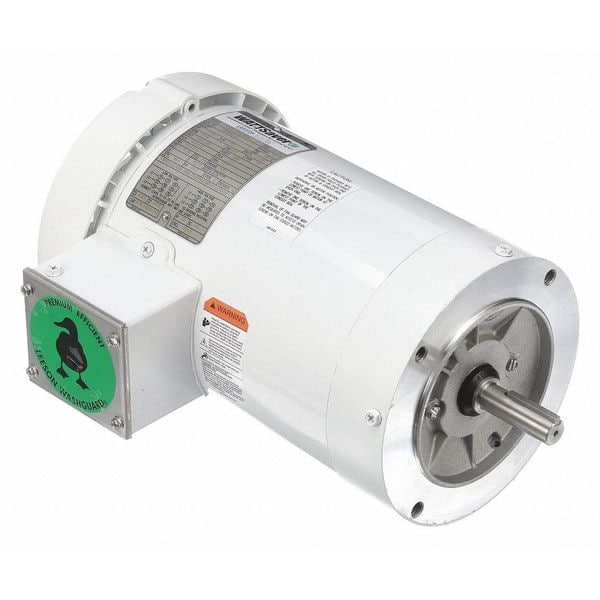

Washdown Motor, 1-1/2HP, 1-15/16in Shaft L

original price: $717.85
8% off
new price: $653.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design 3-Phase
  • Phase Three
  • HP 1 1/2
  • RPM Range 1,701-1,800
  • Voltage 208-230/460V AC
See all product information

Product Information

Dimensions

Length Less Shaft 11 7/16 in
Shaft Dia. 5/8 in
Shaft Length 1 7/8 in
Body Dia. 7.38 in
Overall Length 13 3/8 in
Bolt Circle Dia. 5 7/8 in
Manufacturers Warranty Length 1 yr

Details

Item Washdown Brake Motor
Motor Design 3-Phase
Phase Three
HP 1 1/2
RPM Range 1,701-1,800
Voltage 208-230/460V AC
Frame 56C
Motor Frame Material Steel
Motor Thermal Protection None
Motor Enclosure Design Totally Enclosed Fan-Cooled
Full Load Amps 4.6-4.8/2.4 A
Motor Application Washdown
Motor Mounting Type Face
Motor Shaft Rotation CWSE
Max. Ambient Temp. 40 Degrees C
Nominal Efficiency 86.5 %
CC Number CC005A
Hz 60 Hz
Motor Service Factor 1.15
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Ins. Class F
Application General Purpose
Frame Material Rolled steel
Nameplate RPM 1,750
Motor Bearings Ball
Standards BISSC, CE, CSA, UL
Green Certification or Other Recognition NEMA Premium(R) Rated
NEMA Design B
Motor Mounting Position Horizontal
Shaft Material Stainless Steel
No. of Speeds 1
Full Load Amps @ 50Hz 4.6-4.8/2.4 A
Usable @ 208V Yes
Weight 40 lb
Usable @ 200V No
Removable Base No
Voltage @ 50Hz 460V AC
Finish Painted
Duty Cycle Continuous
Conduit Box Location Exterior

Description

Washdown Brake Motor, Three Phase, Motor Design 3-Phase, 1 1/2 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.6-4.8/2.4 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face
