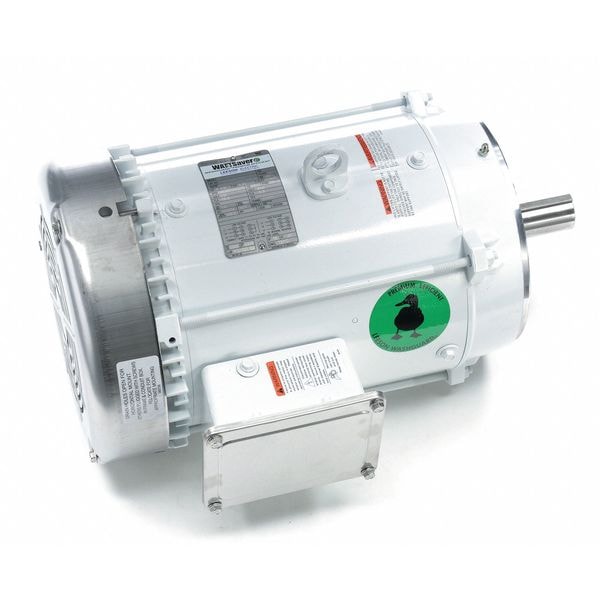

Washdown Motor, 7-1/2 HP, Face, 213TC Frame
Mfr # 141267.00
Zoro # G4884927
product price: $2,122.99
/ea
Item requires special delivery charges. A $120.00 per item surcharge will be applied.
Key Features
Motor Design
Three-Phase
Phase
Three
HP
7 1/2 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
141267.00
Zoro #
G4884927
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1 3/8 in
Shaft Length
3 1/8 in
Length Less Shaft
16 5/8 in
Overall Length
18 3/4 in
Body Dia.
11.5 in
Bolt Circle Dia.
7 1/4 in
Manufacturers Warranty Length
1 yr
Description
Washdown Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 3,525 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 18.6/9.3 A, 213TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
