  11. Washdown Motor, Face/Base, 13-3/8 in. L

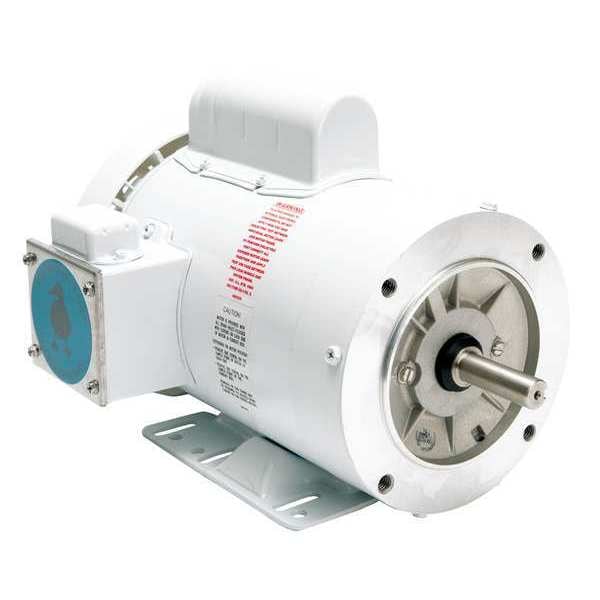

Leeson Washdown Motor, Face/Base, 13-3/8 in. L 113300.00 - main

Washdown Motor, Face/Base, 13-3/8 in. L

  • Mfr # 113300.00

  • Zoro # G4241916

product price: $787.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
RPM Range
1,701-1,800
Voltage
115/230V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
113300.00
Zoro #
G4241916
UPC #
691720011959
Country of Origin
United States

Dimensions

Overall Length
13 7/8 in
Shaft Length
1 7/8 in
Length Less Shaft
11 7/16 in
Body Dia.
7.38 in
Shaft Dia.
5/8 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Capacitor-Start
Phase
Single
HP
1 1/2 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56HC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Drain Plugs
(2) in Conduit Box, (4) Each End
Motor Service Factor
1.15
Hz
60 Hz
Duty
Continuous
Inverter Rated
No
Motor Shaft Rotation
CW/CCW
Endshields
Cast Aluminum
Nominal Efficiency
71 %
Frame Material
Rolled steel
Application
Washguard
Max. Ambient Temp.
40 Degrees C
Ins. Class
F
Includes
Splice Kit
Full Load Amps
19.0/9.5 A
Nameplate RPM
1,725 RPM
Shaft Material
Stainless Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Conduit Box
Split Clam Shell with Rubber Gasket
NEMA Design
B
Motor Bearings
Ball
Motor Mounting Type
C-Face, Rigid Base
Standards
BISSC, CE, CSA, UL
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Usable @ 200V
Not Usable at 200V
Finish
Epoxy-Coated
Weight
45 lb
Duty Cycle
Continuous
Removable Base
No
No. of Speeds
1
Endshield Material
Aluminum
Conduit Box Location
Exterior
Usable @ 208V
Usable at 208V
Series
Washguard
Conduit Box Position
F1

Description

Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 19.0/9.5 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
