Shop LEESON

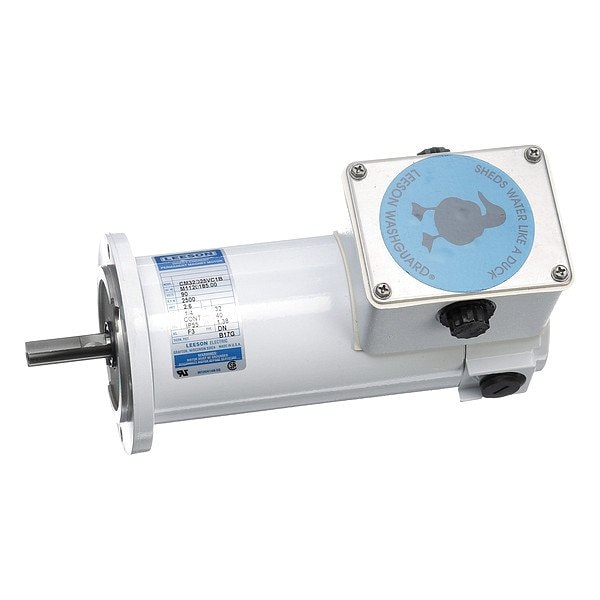

Washdown Motor, Round Base, 32

  • Mfr # M1120185.00

  • Zoro # G111931139

product price:
$
723.99
/ea
Free Shipping & Returns

Key Features

Motor Design
DC Motor
Phase
Phase is not available since DC motor
HP
1/4
RPM Range
2,401-2,500
Voltage
90V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M1120185.00
Zoro #
G111931139
UPC #
691720347591
Country of Origin
United States

Dimensions

Stud Size
1/4 in-20
Bolt Circle Dia.
3 3/4 in
Length Less Shaft
8 5/16 in
Shaft Dia.
1/2 in
Body Dia.
3.3 in
Overall Length
10 in
Shaft Length
1 11/16 in
Body Diameter
3.3 in
Bolt Circle Diameter
3 3/4 in
Shaft Diameter
1/2 in

Details

Item
Washdown Motor
Motor Design
DC Motor
Phase
Phase is not available since DC motor
HP
1/4
RPM Range
2,401-2,500
Voltage
90V DC
Frame
32
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Voltage Compatibility
90V DC
Weight
13 lb
Includes
304 Stainless Steel Conduit Box Cover, Drain Holes, Nitrile Gaskets, Stainless Steel Hardware, Threaded Conduit Entrance
Motor Mounting Type
Round Base
Motor Service Factor
1
Motor Shaft Rotation
CW/CCW
Usable @ 208V
No
Nominal Efficiency
84.4 %
Duty Cycle
Continuous
Standards
CSA Certified, UL Listed
Full Load Amps
2.6 A
Motor Application
Washdown
Shaft Material
303 Stainless Steel
Usable @ 200V
No
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Finish
Epoxy
Motor Shaft Design
Flat
Nameplate RPM
2,500
Shaft Design
Flat
Insulation Class
F
Number of Speeds
1
Full Load Current
2.6 A
Nameplate Voltage
90V DC
Frame Finish
Epoxy-Coated
Product Type
Washdown Motor
Application
Washdown

Description

Washdown
