Shop CENTURY

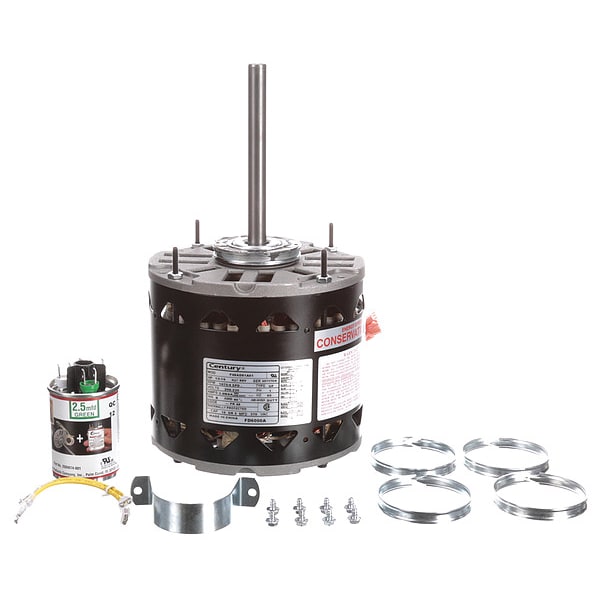

Motor, PSC, 1/2 HP, 1075, 208-230V, 48Y, Open

  • Mfr # FD6000A

  • Zoro # G0471843

product price:
$
162.99
/ea
Free Shipping & Returns

Key Features

Max. Ambient Temp.
40 Degrees C
Voltage
208-230V AC
Motor Design
Permanent Split Capacitor
Duty
Continuous
Resilient Ring Dia.
2 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FD6000A
Zoro #
G0471843
UPC #
-
Country of Origin
India

Dimensions

Resilient Ring Dia.
2 1/4 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Shaft Length
5 in
Manufacturers Warranty Length
1 yr
Overall Length
10 3/8 in
Length Less Shaft
5 7/8 in
Bolt Circle Dia.
5 3/16 in
Stud Size
#8-32
Mounting Stud Length
5/8 in
Lead Length
36 in
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Resilient Ring Diameter
2 1/4 in
Mounting Stud Thread Size
#8-32
Bolt Circle Diameter
5 3/16 in
Frame Size
48
Wire Rope Length
10 3/8 in
Length
10 3/8 in

Details

Max. Ambient Temp.
40 Degrees C
Voltage
208-230V AC
Motor Design
Permanent Split Capacitor
Duty
Continuous
Motor Sub Application
Direct Drive Fan/Blower
Includes
Belly Band, Resilient Mounting Ring
Hz
60
RPM Range
1,001-1,100
Capacitor Required
Capacitor Included
Motor Thermal Protection
Auto
HP
1/2 to 1/6
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Bearings
Sleeve
Standards
CSA Certified, UL Recognized
Full Load Amps
3.09 A
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
No. of Speeds
4
Motor Service Factor
1
Ring to Ring Center
5 7/16 in
Motor Mounting Type
Band, Hole, Ring, Stud
Motor Shaft Design
Flat
Nameplate RPM
1,075
Motor Enclosure Design
Open Air-Over
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Phase
Single
Item
Fan and Blower Motor
Application
Fan/Blower
Motor Mounting Position
Horizontal
Ins. Class
B
Motor Application
HVAC/R
Mounting Stud Location
4/Shaft End
Weight
16 lb
Stud Quantity
4
Mounting Holes
(4) #8-32
Number of Shafts
1
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Motor Frame Material
Steel
Number of Speeds
4
Mounting
Stud
Nameplate Service Factor @ 60 Hz
1
Sub Application
General Purpose
Drive Type
Direct Drive
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
1 yr
Wattage
370 W
Bearing Type
Ball
Full Load Current @ 60 Hz
3.09 A
Motor Enclosure Type
Open Air Over
Product Type
Fan and Blower Motor
Frame Material
Steel
Frequency
60 Hz
Shaft Design
Flat
Insulation Class
B

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp, 1/6 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 208-230V AC, 3.09 A Full Load Amps, 48 Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
