  11. Washdown Mtr, Cap Strt, TEFC, 1/2hp, 1725rpm

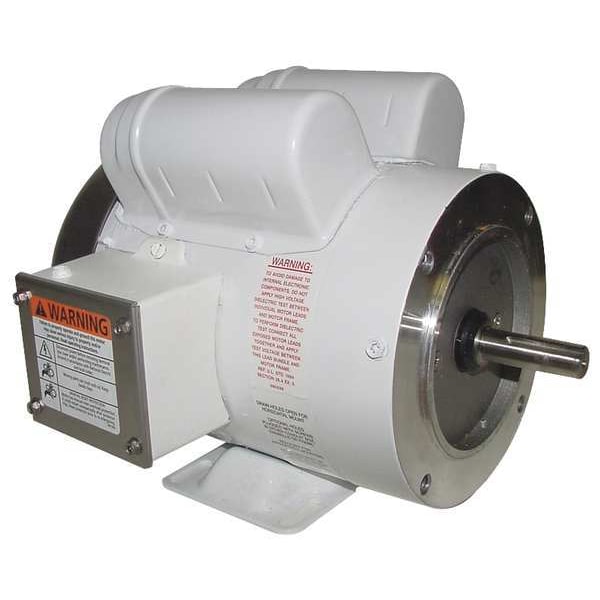

Leeson Washdown Mtr, Cap Strt, TEFC, 1/2hp, 1725rpm 056C17W15326 - main

Washdown Mtr, Cap Strt, TEFC, 1/2hp, 1725rpm

  • Mfr # 056C17W15326

  • Zoro # G3457501

product price: $578.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
RPM Range
1,701-1,800
Voltage
115/230V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
056C17W15326
Zoro #
G3457501
UPC #
-
Country of Origin
United States

Dimensions

Shaft Length
2 1/16 in
Length Less Shaft
9 1/4 in
Body Dia.
6.5 in
Shaft Dia.
5/8 in
Overall Length
11 3/16 in
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Capacitor-Start
Phase
Single
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56C
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Position
Horizontal
Motor Mounting Type
C-Face, Rigid Base
Full Load Amps
8.8/4.4 A
Standards
CSA Certified (LR63596), UL Recognized (E47479), USDA Approved
Duty
Continuous
Hz
60 Hz
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Service Factor
1.15
NEMA Design
N
Motor Shaft Rotation
CW/CCW
Drain Plugs
(2) in Conduit Box, (4) Each End
Nameplate RPM
1,725 RPM
Endshields
Epoxy Painted Aluminum
Conduit Box
Cast Oversized Gasketed
Frame Material
Epoxy Coated
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
Keyed
Motor Bearings
Ball
Nominal Efficiency
66 %
Motor Application
General Purpose
Ins. Class
F
Shaft Material
Stainless Steel
Endshield Material
Aluminum
Duty Cycle
Continuous
Finish
Epoxy-Coated
Usable @ 208V
Usable at 208V
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Weight
26.3 lb

Description

Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.8/4.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design N, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
