Shop DAYTON

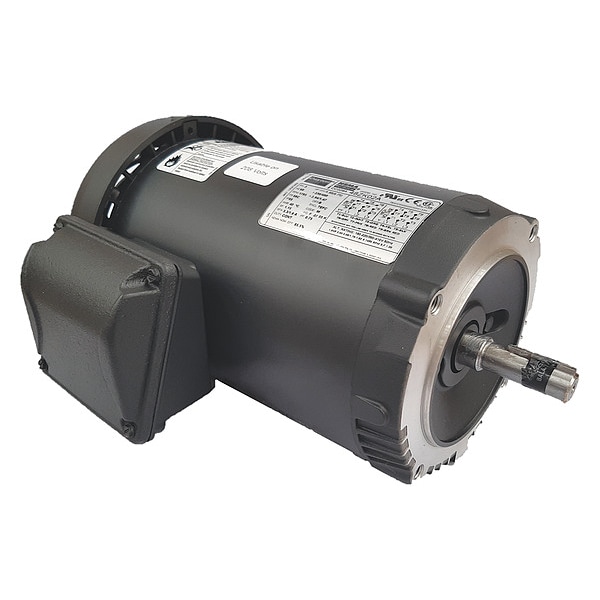

Three-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1765 Nameplate RPM

  • Mfr # 48ZK02

  • Zoro # G4849586

product price:
$
338.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1765
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
2.94/1.47 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
48ZK02
Zoro #
G4849586
UPC #
190735891698
Country of Origin
United States

Dimensions

Length Less Shaft
11 13/16 in
Overall Length
13 7/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
2 yr
Wire Rope Length
13 7/8 in
Bolt Circle Diameter
5 7/8 in
Frame Size
56C
Body Diameter
6.45 in
Shaft Diameter
5/8 in

Details

Item
General Purpose Motor
HP
1
Nameplate RPM
1765
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
2.94/1.47 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CE, CSA, UL
CC Number
CC029A
Motor Sub Application
Aeration Fan
Inverter Rated
Yes
Motor Thermal Protection
None
Duty Cycle
Continuous
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
F
Manufacturers Warranty
2 yr
NEMA Design Class
B
Conduit Box Location
Exterior
Constant Torque Rating
4:1
Bearing Protection Type
Shaft Slingers
Bearing Lubrication Type
Permanently Lubricated
Usable @ 208V
Not Usable at 208V
Shaft Design
Keyed
Usable @ 200V
Not Usable at 200V
Full Load Current @ 60 Hz
2.94/1.47 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frame Material
Steel
Number of Speeds
1
Inverter Rating
Inverter Rated
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
NEMA Premium Efficiency
Product Type
General Purpose Motor
Weight
16 31/32 kg
Application
General Purpose
Frequency
60 Hz
Variable Torque Rating
10:1
Includes
Shaft Key
Mounting Position
All Angle
Bearing Type
Ball

Description

The DAYTON - 48ZK02 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is designed for industrial and commercial use in power transmission and pneumatics applications. It converts electrical energy into mechanical energy to operate different types of machinery across various sectors, from manufacturing lines to HVAC systems.

Key Features of the DAYTON - 48ZK02 General Purpose Motor:

  • CC Number: The unique identifier assigned by EASA for tracking based on design, specifications, and performance characteristics.
  • Duty Cycle: Intended for continuous operation within the specified conditions, based on design and specifications.
  • Frame: A standard size 56C frame that houses and supports the internal parts of the motor.
  • Full Load Amps: Rated to draw a maximum current of 2.94/1.47 A under full load conditions as per product specifications.
  • Inverter Rated: Compatible with variable frequency drives as per product specifications, which may allow control over speed and torque
  • Motor Bearings: Equipped with ball bearings intended to minimize friction between moving parts according to design parameters.
  • Motor Enclosure Design: Features a totally enclosed fan-cooled design intended to shield internal components from certain environmental factors according to product specifications.
  • Motor Mounting Position & Type: All angle mounting position with C-Face type ensures compatibility with different industrial machinery
  • Nameplate RPM & No. Of Speeds : Specified for an operational speed of 1765 RPM under full load condition with one defined speed setting as per product details.
