Shop LEESON

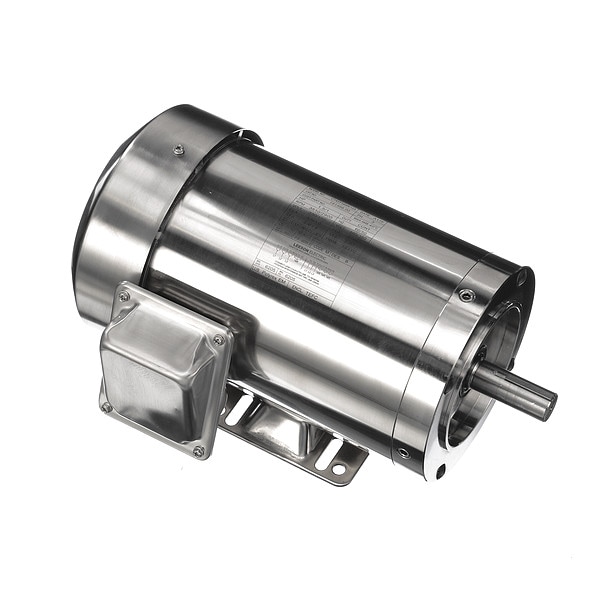

WashdownMotor, 1-1/2hp, 3510RPM, 230/460VAC

  • Mfr # 191488.00

  • Zoro # G300722951

product price:  $1,562.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
143TC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
191488.00
Zoro #
G300722951
UPC #
691720980323
Country of Origin
China

Dimensions

Shaft Length
2 in
Overall Length
13 5/8 in
Length Less Shaft
11 1/2 in
Shaft Dia.
7/8 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in
Body Dia.
6.5 in
Wire Rope Length
13 5/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 1/2 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
143TC
Motor Frame Material
Stainless Steel
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan Cooled
Shaft Material
Stainless Steel
Hz
60/50 Hz
Usable @ 200V
Not Usable at 200V
NEMA Design
B
Usable @ 208V
Usable at 208V
Full Load Amps @ 50Hz
4.2-3.8/1.9 A
No. of Speeds
1
Nameplate RPM
3,510 RPM
Conduit Box Location
Exterior
Bearing Protection
Shaft Shields
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Weight
45 lb
Max. Ambient Temp.
40 Degrees C
Service Factor @ 50Hz
1.2
Full Load Amps
3.8/1.9 A
Motor Mounting Position
Horizontal
Motor Service Factor
1.2
Duty Cycle
Continuous
Motor Mounting Type
C-Face, Rigid Base
Ins. Class
F
Endshield Material
Stainless Steel
Finish
Epoxy-Coated
Motor Application
General Purpose
Removable Base
No
Drain Plugs
(1) in Conduit Box
RPM @ 50Hz
3,510 RPM
Standards
BISSC Certified, CE, CSA Certified, UL Recognized
Motor Bearings
Ball
Voltage @ 50Hz
208-230/460V AC
Inverter Rated
Inverter Rated
Motor Shaft Rotation
CW/CCW
Motor Shaft Design
Keyed
Nominal Efficiency
84 %
HP @ 50Hz
1 1/2 hp
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 3,510 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.8/1.9 A, 143TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
