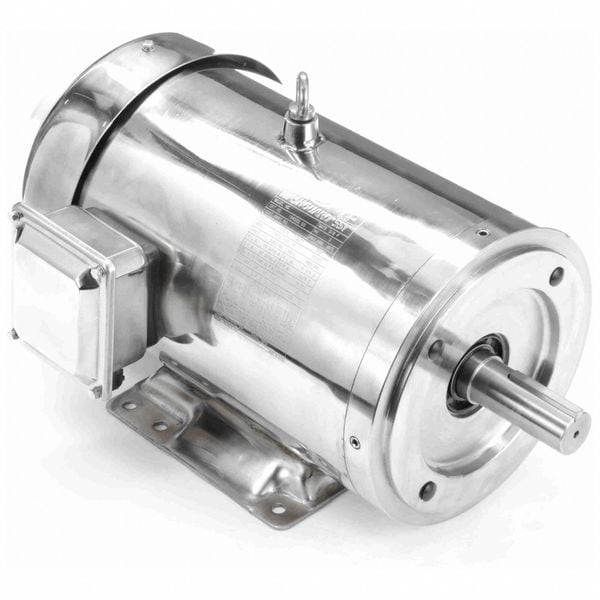

WashdownMotor, 10hp, 215TC, 230/460VAC
Mfr # 194007.00
Zoro # G106626644
product price: $4,751.99
/ea
Item requires special delivery charges. A $120.00 per item surcharge will be applied.
Key Features
Motor Design
Three-Phase
Phase
Three
HP
10 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
194007.00
Zoro #
G106626644
UPC #
691720052754
Country of Origin
China
Dimensions
Overall Length
21 9/16 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Body Dia.
1.24 in
Bolt Circle Dia.
7 1/4 in
Description
Washdown Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 25.2/12.6 A, 215TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
