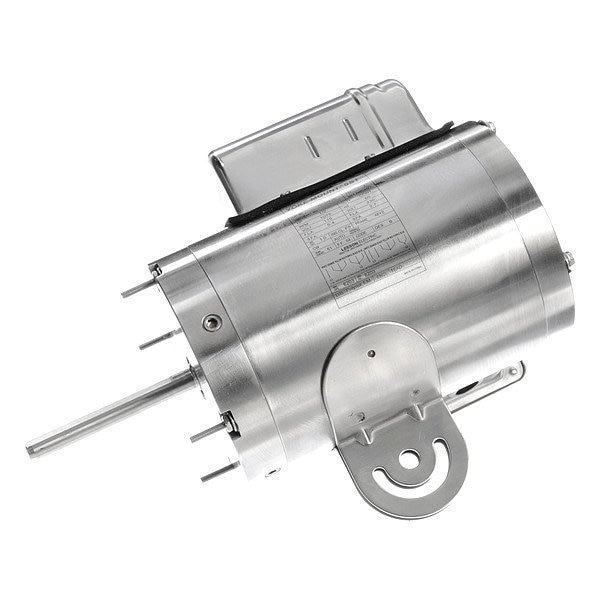

WashdownMotor, 1/2hp, 1145RPM, 115/230VAC
Mfr # 191548.00
Zoro # G811931231
product price: $996.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2 hp
RPM Range
1,101-1,200
Voltage
115/230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
191548.00
Zoro #
G811931231
UPC #
691720052570
Country of Origin
China
Dimensions
Bolt Circle Dia.
5 1/8 in
Overall Length
11 9/16 in
Body Dia.
5.5 in
Shaft Length
4 1/16 in
Length Less Shaft
7 1/2 in
Shaft Dia.
1/2 in
Description
Washdown Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,145 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.4/2.7 A, 48YZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design None, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
