Shop DAYTON

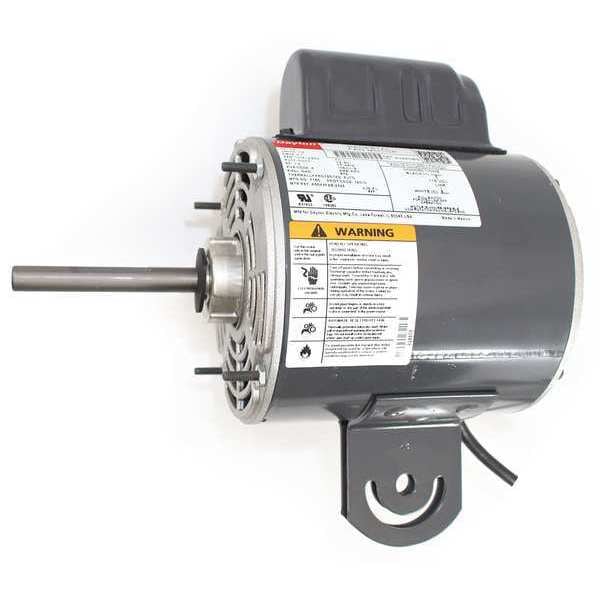

Pedestal Fan Motor, 1/4 hp

  • Mfr # 4UX60

  • Zoro # G3296212

product price:
$
277.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
1,001-1,100
No. of Speeds
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4UX60
Zoro #
G3296212
UPC #
190735335567
Country of Origin
Multiple

Dimensions

Overall Length
10 3/4 in
Shaft Length
3 3/4 in
Shaft Dia.
1/2 in
Body Dia.
5 5/8 in
Frame Size
48YZ
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Wire Rope Length
10 3/4 in
Length
10 3/4 in

Details

Item
Pedestal Fan Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
1,001-1,100
No. of Speeds
2
Voltage
115V AC
Motor Shaft Rotation
CWSE
Frame
48YZ
Motor Enclosure Design
Open Air-Over
Application
Air Circulators where Motor is Mounted Directly to Fan Column, Also Used on Exhaust Fans, Unit Heaters and Other Air-moving Uses
Motor Shaft Design
Flat
10 Ft. Cord and Pull Chain Switch
Yes
Motor Thermal Protection
Auto
Capacitor Required
Capacitor Included
Full Load Amps
3.1 A
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Ambient Temperature
40 Degrees C
Ins. Class
B
Hz
60 Hz
Motor Application
HVAC/R
Includes
Water Slinger, 10-Ft Cord and Pull-Chain Switch
Duty
Continuous
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
Yoke
Standards
CSA Certified, UL Recognized
Motor Sub Application
Pedestal Fan
Nameplate RPM
1,075
Motor Service Factor
1
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Drive Type
Direct Drive
Insulation Class
B
Shaft Design
Flat
Bearing Type
Ball
Product Type
Pedestal Fan Motor
Motor Enclosure Type
Open Air Over
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Sub Application
Pedestal Fan
Full Load Current @ 60 Hz
3.1 A
Nameplate Service Factor @ 60 Hz
1

Description

Pedestal Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,075, No. of Speeds 2, Voltage 115V AC, 3.1 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air-Over, Motor Mounting Position Horizontal, Shaft Length 3 3/4 in, Shaft Dia. 1/2 in
