  11. WashdownMotor, 1/2hp, 1725RPM, 230/460VAC
No Product Image Available

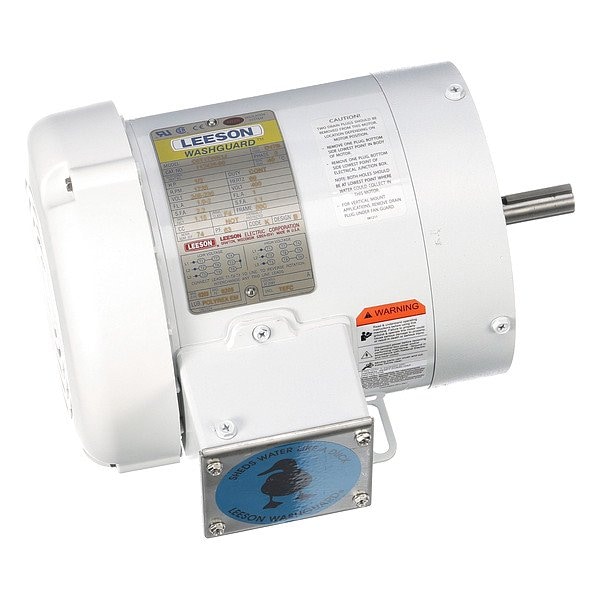

WashdownMotor, 1/2hp, 1725RPM, 230/460VAC

  • Mfr # 112429.00

  • Zoro # G811931248

product price: $632.69
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
112429.00
Zoro #
G811931248
UPC #
691720010808
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
9 in
Overall Length
10 7/8 in
Bolt Circle Dia.
5 7/8 in
Shaft Length
1 7/8 in
Stud Size
3/8"-16

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Shaft Material
Stainless Steel
NEMA Design
B
Usable @ 208V
Not Usable at 208V
Motor Bearings
Ball
Voltage Compatibility
230V AC, 460V AC
Inverter Rated
Inverter Rated
Usable @ 200V
Not Usable at 200V
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Horizontal
Motor Mounting Type
C-Face
Duty Cycle
Continuous
Motor Service Factor
1.15
No. of Speeds
1
Motor Shaft Design
Keyed
Motor Application
General Purpose
Standards
CE, CSA Certified, UL Listed, USDA Approved
Full Load Amps
2.0/1.0 A
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Nameplate RPM
1,725 RPM
Inverter Rating
10:1
Ins. Class
F
Finish
Epoxy-Coated
Nominal Efficiency
74 %
Weight
25 lb
Endshield Material
Aluminum
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.0/1.0 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
