  11. WashdownMotor, 1/2hp, 230/460VAC
No Product Image Available

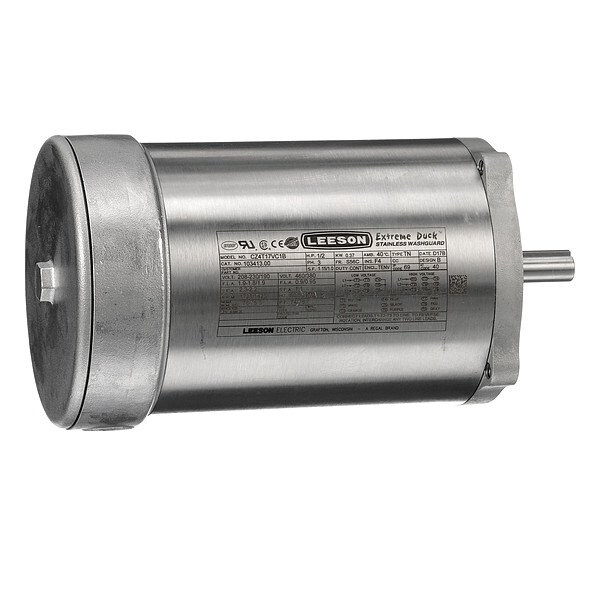

WashdownMotor, 1/2hp, 230/460VAC

  • Mfr # 103413.00

  • Zoro # G811931279

product price: $1,441.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
103413.00
Zoro #
G811931279
UPC #
691720000267
Country of Origin
United States

Dimensions

Bolt Circle Dia.
5 7/8 in
Stud Size
3/8"-16
Length Less Shaft
9 5/8 in
Overall Length
11 1/2 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Manufacturers Warranty Length
Not available
Body Dia.
6.1 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
S56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
NEMA Design
B
Service Factor @ 50Hz
1
Motor Bearings
Ball
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Shaft Material
Not available
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
C-Face
Standards
CE, CSA Certified, UL Listed
Voltage @ 50Hz
190/380V AC
RPM @ 50Hz
1,425 RPM
HP @ 50Hz
1/2 hp
Motor Application
General Purpose
No. of Speeds
1
Motor Shaft Design
Keyed
Full Load Amps
1.8/0.9A
Bearing Protection
Not available
Motor Shaft Rotation
CW/CCW
Finish
Unfinished
Nameplate RPM
1,725 RPM
Endshield Material
Stainless Steel
Ins. Class
F
Duty Cycle
Continuous
Motor Service Factor
1.15
Motor Mounting Position
Horizontal
Includes
Not available
Nominal Efficiency
75.3 %
Full Load Amps @ 50Hz
0.82 A
Hz
60/50 Hz
Weight
32 lb
Voltage Compatibility
230V AC, 460V AC
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.8/0.9A, S56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
