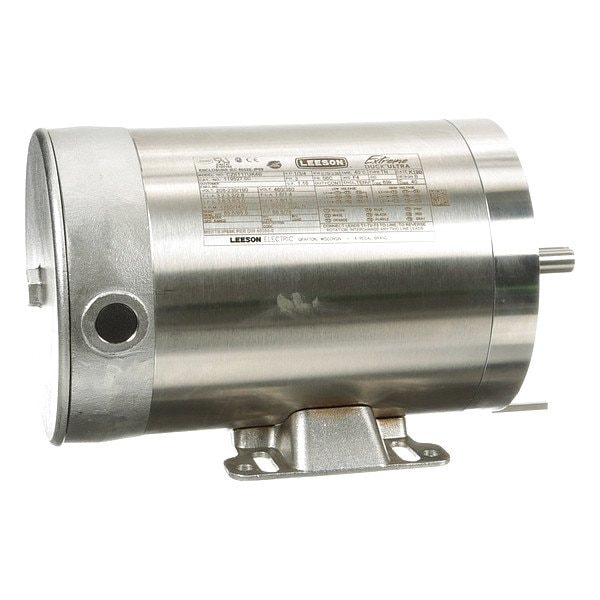

WashdownMotor, 1hp, 1750RPM, 56C, 230/460VAC

  • Mfr # 119527.00

  • Zoro # G111931269

product price:
$
2,121.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
119527.00
Zoro #
G111931269
UPC #
691720053447
Country of Origin
United States

Dimensions

Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
Not available
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Body Dia.
6.6 in
Stud Size
3/8"-16
Length Less Shaft
10 3/16 in
Overall Length
13 1/4 in
Wire Rope Length
13 1/4 in
Length
13 1/4 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Voltage Compatibility
230V AC, 460V AC
Usable @ 208V
Not Usable at 208V
Motor Application
General Purpose
NEMA Design
B
Full Load Amps
2.8/1.4 A
Includes
Not available
HP @ 50Hz
3/4 hp
Shaft Material
Stainless Steel
Full Load Amps @ 50Hz
1.4 A
Duty Cycle
Continuous
Service Factor @ 50Hz
1.15
Endshield Material
Stainless Steel
Nameplate RPM
1,750 RPM
Inverter Rating
3:1
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Motor Bearings
Ball
Weight
48 lb
Inverter Rated
Inverter Rated
RPM @ 50Hz
1,450 RPM
Motor Shaft Design
Keyed
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Finish
No Paint
Voltage @ 50Hz
190/380V AC
Motor Mounting Position
Horizontal
Max. Ambient Temp.
40 Degrees C
Hz
60/50 Hz
Ins. Class
F
Nominal Efficiency
84 %
Standards
CE, CSA Certified, UL Listed
Bearing Protection
Not available
Motor Mounting Type
C-Face
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.8/1.4 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face
