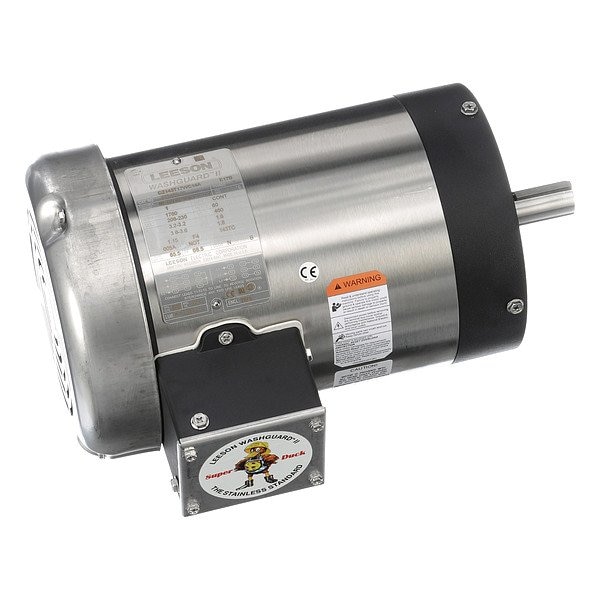

WashdownMotor, 1hp, 1760RPM, 230/460VAC
Mfr # 122198.00
Zoro # G211931251
product price: $1,075.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Stainless Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
122198.00
Zoro #
G211931251
UPC #
691720052488
Country of Origin
United States
Dimensions
Shaft Length
2 1/8 in
Bolt Circle Dia.
5 7/8 in
Stud Size
3/8"-16
Shaft Dia.
7/8 in
Length Less Shaft
10 5/8 in
Overall Length
13 1/4 in
Body Dia.
7.4 in
Description
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 143TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
