Shop LEESON

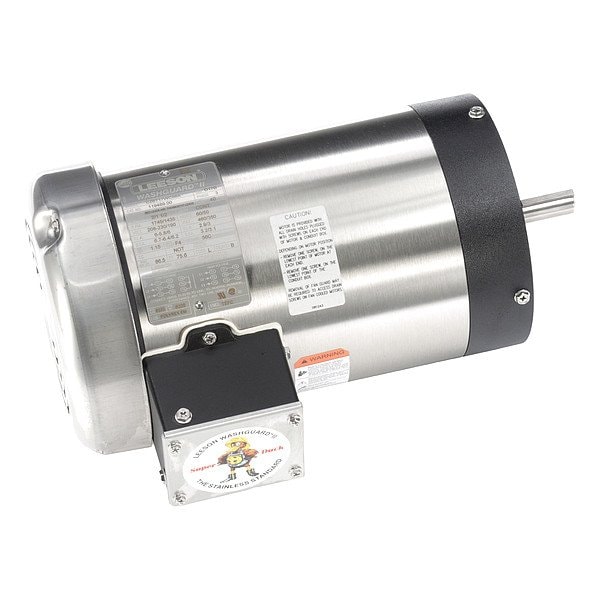

WashdownMotor, 2hp, 1745RPM, 56C, 230/460VAC

  • Mfr # 119489.00

  • Zoro # G211931220

product price:
$
1,269.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
119489.00
Zoro #
G211931220
UPC #
691720052464
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
Not available
Shaft Dia.
5/8 in
Length Less Shaft
11 3/4 in
Shaft Length
1 7/8 in
Overall Length
14 3/16 in
Stud Size
3/8"-16
Body Dia.
7.4 in
Bolt Circle Dia.
5 7/8 in
Wire Rope Length
14 3/16 in
Length
14 3/16 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Standards
CSA Certified, UL Listed
HP @ 50Hz
1 1/2 hp
Bearing Protection
Not available
Nameplate RPM
1,745 RPM
Includes
Not available
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
Keyed
Full Load Amps @ 50Hz
2.0 A
Usable @ 200V
Not Usable at 200V
Shaft Material
Stainless Steel
Voltage @ 50Hz
190/380V AC
Motor Shaft Rotation
CW/CCW
Motor Application
General Purpose
Motor Mounting Position
Horizontal
Endshield Material
Aluminum
Nominal Efficiency
84 %
Voltage Compatibility
230V AC, 460V AC
Service Factor @ 50Hz
1.15
Duty Cycle
Continuous
Weight
65 lb
Motor Mounting Type
C-Face
RPM @ 50Hz
1,435 RPM
Finish
Epoxy-Coated
Hz
60/50 Hz
Motor Service Factor
1.15
No. of Speeds
1
Full Load Amps
5.8/2.9 A
NEMA Design
B
Ins. Class
F
Motor Bearings
Ball
Usable @ 208V
Not Usable at 208V
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
