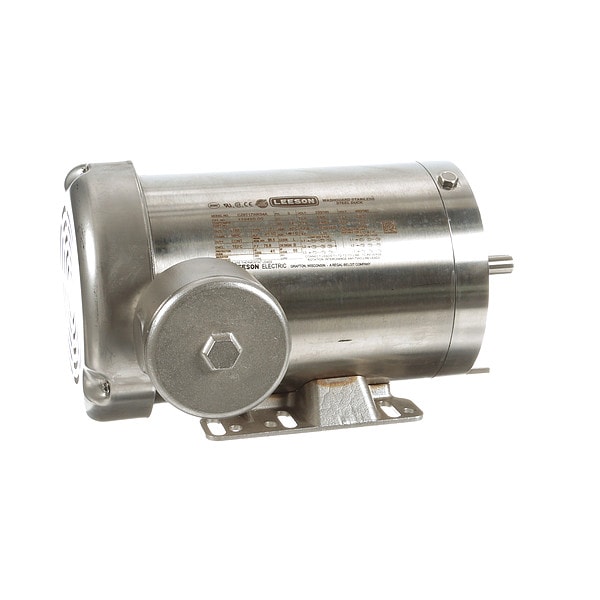

Leeson WashdownMotor, 2hp, 1745RPM, 230/460VAC 119495.00 - main

WashdownMotor, 2hp, 1745RPM, 230/460VAC

  • Mfr # 119495.00

  • Zoro # G300722982

product price:  $2,537.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
119495.00
Zoro #
G300722982
UPC #
691720053010
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Overall Length
13 3/16 in
Body Dia.
7.3 in
Bolt Circle Dia.
5 7/8 in
Length Less Shaft
11 1/4 in
Manufacturers Warranty Length
1 yr
Shaft Length
1 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56HC
Motor Frame Material
Stainless Steel
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan Cooled
Standards
CE, CSA Certified, UL Recognized
Motor Shaft Design
Keyed
Nameplate RPM
1,745 RPM
Removable Base
No
Nominal Efficiency
86.5 %
Inverter Rated
Inverter Rated
Motor Shaft Rotation
CW/CCW
Duty Cycle
Continuous
Motor Mounting Type
C-Face, Rigid Base
Motor Application
General Purpose
Weight
54 lb
Max. Ambient Temp.
40 Degrees C
Bearing Protection
Shaft Shields
Inverter Rating
3:1
Ins. Class
F
Endshield Material
Stainless Steel
Finish
Epoxy-Coated
Drain Plugs
(1) in Conduit Box
Motor Mounting Position
Horizontal
Shaft Material
Stainless Steel
Full Load Amps
5.8/2.9 A
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Full Load Amps @ 50Hz
2.9 A
Conduit Box Location
Exterior
No. of Speeds
1
NEMA Design
B
Motor Service Factor
1.2
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Voltage @ 50Hz
460V AC
Hz
60/50 Hz
Motor Bearings
Ball
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 56HC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
